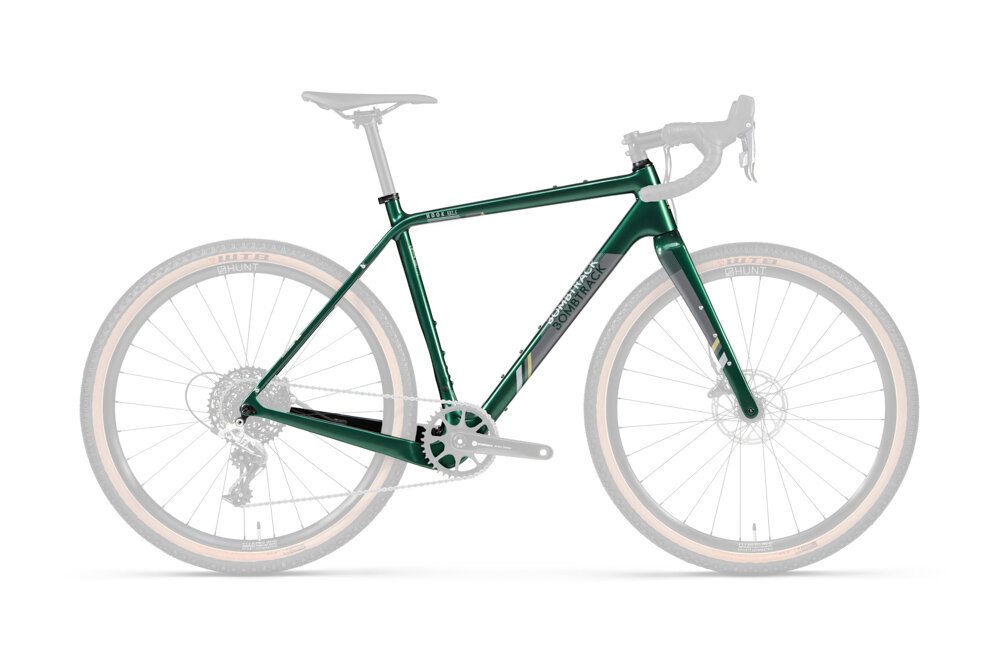

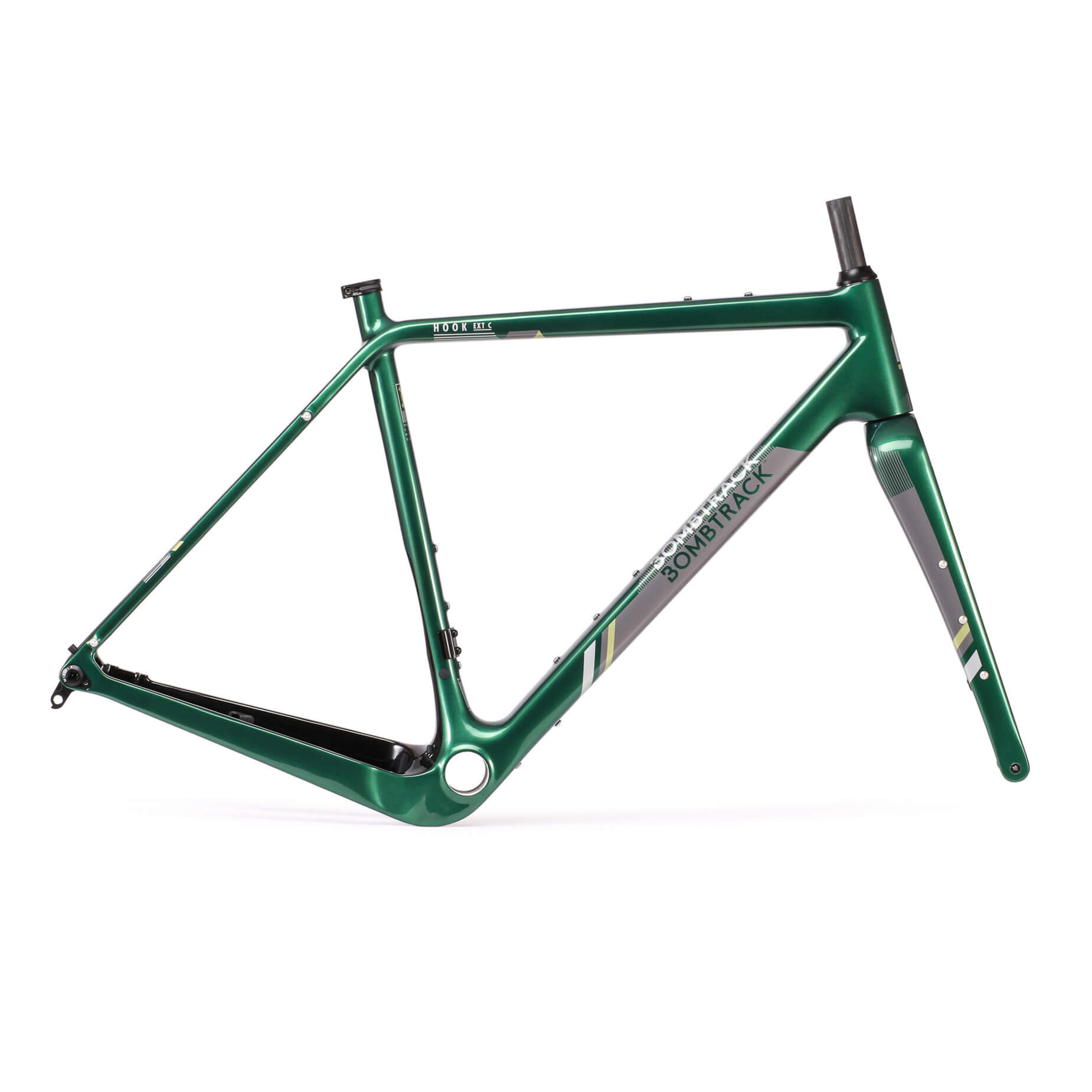

HOOK EXT C FRAMESET

US$0.00

A fast bike for all kinds of riding. The Hook EXT C might have been designed as a gravel racer, but that doesn’t stop it also being a perfect tourer, commuter, or even summer-season cyclocross bike. Offering uprated strength and manoeuvrability, this agile adventure bike is the perfect companion for technical backcountry raids.

Color:
Quantity:
Add To Cart

A fast bike for all kinds of riding. The Hook EXT C might have been designed as a gravel racer, but that doesn’t stop it also being a perfect tourer, commuter, or even summer-season cyclocross bike. Offering uprated strength and manoeuvrability, this agile adventure bike is the perfect companion for technical backcountry raids.

A fast bike for all kinds of riding. The Hook EXT C might have been designed as a gravel racer, but that doesn’t stop it also being a perfect tourer, commuter, or even summer-season cyclocross bike. Offering uprated strength and manoeuvrability, this agile adventure bike is the perfect companion for technical backcountry raids.



An ultralight carbon construction strips mass from the Hook EXT while retaining the versatility the range is known for.




SPECIFICATIONS

ModelHOOK EXT C
Color 1Glossy Metallic Black
Color 2Glossy Dark Green
FrameTORAY T700 / T800 Hi-Mod carbon, TA, rack / fender mounts, 68 mm T47 BB shell
ForkFull carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts (can double as fender mounts),internal hub dynamo cable routing
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
Through axle12 x 100 mm / 12 x 142 mm
Seat clampBOMBTRACK PRIME 31.8 mm
Rack-
Weight frameset1260 frame (size M, incl. TA, hanger, cable guides) / 600 g fork (300 mm steerer, incl. TA)
Maximum rider weight105 kg incl. luggage
ASTM riding condition2

BUILD INFO

ModelHOOK EXT C
BB standardT47 - 68 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle36°
Fork max tire clearance w/o fender650B x 52C / 700C x 45C
Frame max tire clearance w/o fender650B x 52C / 700C x 45C
Maximum chainring clearance 1x46 T with 45 mm chainline
Maximum chainring clearance 2x50 / 34 T with 43.5 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameterFD direct mount
Brake mount frontFM
Brake mount rearFM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
Derailleur hangerBT-DH-013
Frame small partsBT-CR-014 / BT-CR-015
Through axle frontBT-TA-F-601
Through axle rearBT-TA-R-603

GEOMETRY

FRAME GEOMETRY

ModelHOOK EXT C
Bike SizeXSSMLXL
Wheel size27.5''27.5''27.5''27.5''27.5''
Seat Tube Length490520540560580
Horizontal TT length520535550565580
Seat Angle74.5°74.0°73.0°73.0°73.0°
Seat Angle effective74.5°74.0°73.0°73.0°73.0°
Head Angle70.5°71.0°71.5°72.0°72.0°
Headtube Length120140150170190
BB Drop6767676767
Chainstay Length435435435435435
Fork Offset4848484848
Trail7167646161
Wheelbase Length10181025102510351050
Standover759783798818837
Reach371375376384394
Stack537558568591610
Front Center592599601609624
Axle to Crown398398398398398
Minimum rider height 15501630171017901860
Maximum rider height 16501730181018801950





HIGHLIGHTS

* Full carbon frame with tapered head tube, through axles, fender mounts, stealth dropper post routing and T47 bottom bracket.

* Full carbon tapered fork with internal light cable routing, through axles and triple cage mounts.

* Toptube bag direct mounts, triple cage mounts on downtube and seattube for optimized bottle position, bottle cage mounts underneath the downtube and rear rack mounts.

* Front derailleur compatible.

* 12 mm through axles front and rear.
