MUNROE CARGO

If you’re trying to use the van less and the bike more, then the Munroe Cargo is the bike for you. Specifically designed aluminium frame for load carrying with its frame-mounted front rack with a 30 kg capacity, a double top tube and tall head tube deliver a stable ride with good visibility, even when loaded. Having a smaller front wheel aids manoeuvrability and both wheels have wide rims and fat Kenda tyres for strength. A 36 / 22T crankset coupled with a 9 speed 11 – 36T cassette allows you to keep the pedals spinning whatever the cargo. Shimano hydraulic brakes will keep you and your load safely under control and being a Bombtrack, there are bottle, rack and fender mounts on the frame for all your extra’s.

MATT TEAL

HIGHLIGHTS

FRAME

Cargo bike model with frame mounted front rack for up to 30 kg load.
WHEELS

Strong Bombtrack Lune i24 double wall rims.
DRIVETRAIN

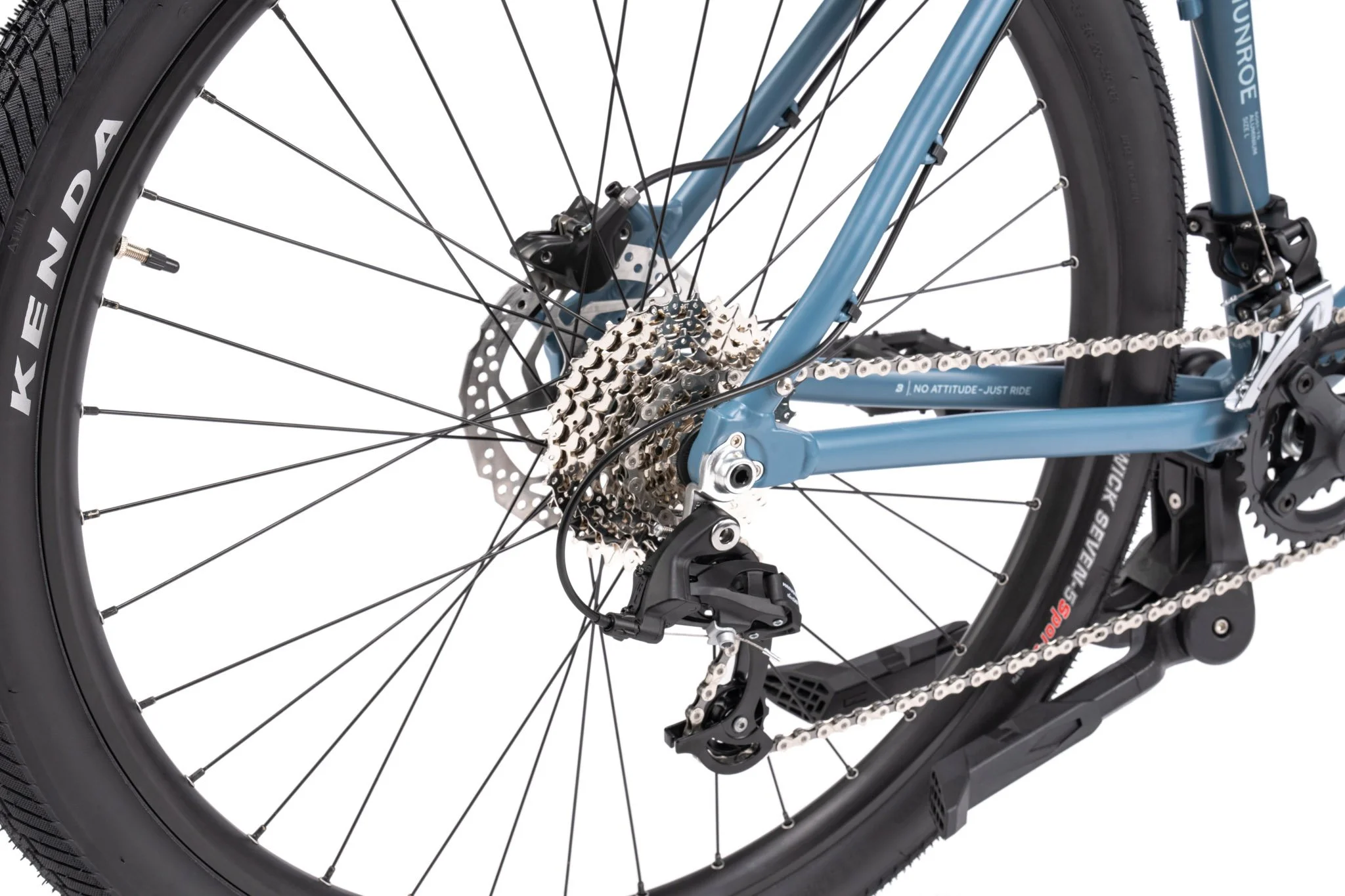

Microshift 2 x 9 speed drivetrain with 11 – 36t cassette.
BRAKES

Shimano hydraulic disc brakes with 160 mm rotors.
TIRES

Comfortable Kenda Kwick Seven.5 650B x 50C / Kranium 20 x 20.3‘‘ tires.
KICKSTAND

Sturdy center mount double leg kickstand.

"Allowing it to transport a month’s shopping home, or an entire house party’s worth of refreshments, it’s one more reason not to use a car."

SPECIFICATIONS

Model	MUNROE CARGO
Color 1	Matt Teal
Color 2	-
Frame	6061-T6 hydroformed aluminium, TA, rack / fender mounts, 68 mm BSA BB shell
Fork	6061 aluminium, TA dropouts, with fender mounts, internal light cable routing
Handlebar	Bombtrack Origin flat bar, 31.8 mm, 8° backsweep
Grips	Bombtrack Scroll grips
Stem	Bombtrack Wander forged aluminium stem, +17°
Headset	Neco H52MP sealed integrated aheadset, 1.1/8''
Levers	Shimano BL-M200 hydraulic brake levers
Shifter	Microshift SL-M859 shifter 2 x 9
Brakes	Shimano BR-MT200 post mount hydraulic disc brake
Rotor	Shimano SM-RT26 160 mm rotors
Crankset	Bombtrack Aude aluminium crank, square taper
BB	BSA sealed BB, 119 mm, square taper
Pedals	Wellgo B109N flat pedal
Chain	KMC X9 chain, 1/2" x 11/128"
Chainring	Forged steel, 36 / 22 T
Cassette	Microshift CS-H092 9-speed, 11 - 36 T
Front derailleur	Microshift FD-M462-B
Rear derailleur	Microshift RD-M46S
Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	Bombtrack Lune double wall, i24, 20"
Rear rim	Bombtrack Lune double wall, i24, 27.5"
Saddle	Bombtrack Fuzz saddle
Seat post	Bombtrack Beech 27.2 mm x 400 mm
Seat clamp	Bombtrack Origin 31.8 mm
Front tire	Kenda Kranium 20 x 2.3"
Rear tire	Kenda Kwick Seven.5 27.5 x 2.2"
Fender	-
Rack	Bombtrack Cargo frontrack, aluminium
Kickstand	Center mount double leg kickstand
Light	-
Weight	14.8 kg (size M)
Weight frameset	3240 g frame (size M, incl. TA, hanger, rack and bolts) / 770 g fork (400 mm steerer)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	1

Final product may vary in appearance, finish and minor details.

BUILD INFOS

Model	MUNROE CARGO
BB standard	BSA - 68 mm shell width
Headset standard (S.H.I.S.)	IS42 / 28.6 \| IS42 / 30
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance w/o fender	20'' x 2.5''
Frame max tire clearance w/o fender	27.5'' x 2.2''
Maximum chainring clearance 1x	42 T with 45 mm chainline
Maximum chainring clearance 2x	52 / 38 T with 45 mm chainline
Seat post diameter	27.2 mm
Seat clamp diameter	31.8 mm
Front derailleur clamp diameter	31.8 mm
Frame front derailleur compatible	yes
Brake mount front	PM 6''
Brake mount rear	PM 6''
Maximum rotor clearance front	180 mm
Maximum rotor clearance rear	180 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	MTB
Crankarm	170 mm
Q Factor	174 mm
BCD crank	104 mm / 64 mm, 4 bolts
Chainring offset	0 mm
Chainline	49 mm
Spoke length front wheel	182 mm, 184 mm
Spoke length rear wheel	270 mm, 269 mm
Spoke count (front / rear)	36 / 36
ERD	380 mm / 563 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance / offset	56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset	51 mm center to center / 8.8 mm
Stem length	60 mm
Stem angle	17°
Headset spacers	2 x 10 mm, 1 x 5 mm
Seat post offset	24 mm
Seat post length	400 mm
Bike trailer	approved
Seat tube mounted child seat	approved
Derailleur hanger	BT-DH-023
Frame small parts	-
Hub end caps front	BT-HC-012
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	-
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-603

GEOMETRY

FRAME GEOMETRY

Model	MUNROE CARGO
Bike Size	M	L
Wheel size	27.5'' / 20''	27.5'' / 20''
Seat Tube Length	460	520
Horizontal TT length	588	617
Seat Angle	73.0°	73.0°
Head Angle	71.0°	70.5°
Headtube Length	300	350
BB Drop	65	65
Chainstay Length	440	440
Fork Offset	40	40
Trail	45	48
Wheelbase Length	1097	1135
Standover	780	832
Reach	414	430
Stack	567	612
Front Center	663	701
Axle to Crown	348	348
Minimum rider height	1650	1800
Maximum rider height	1820	1950

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.
