OUTLAW

If you don’t like grease and fuss, then this is the ultimate bike for you. The Outlaw has one gear and no chain or oily parts to rub on your clothes. Instead, a Gates Carbon Belt drive does the work via a special toothed chainring and rear cog. The 4130 double butted steel frame has a tapered headtube, bottle mounts, sliding dropouts plus we’ve fitted a Bombtrack Deck front rack for picking up supplies. With no gears to think about just sit back, pedal and let the large WTB Horizon 650 x 47 mm tyres float over road imperfections. Shimano’s hydraulic disc brakes will keep you and your cargo safe, especially useful if you’ve stacked up that front rack with pizza and beer.

MATT BLACK

HIGHLIGHTS

  • FRAME

    Double butted crmo frame with sliding dropouts and BSA bottom bracket.

  • FORK

    Full aluminium fork with internal light cable routing, fender and lowrider rack mounts.

  • CRANKSET

    Bombtrack TAF19 crank with 24mm spindle and Gates CDX 55t chain ring.

  • RACK

    Bombtrack Deck front rack included.

  • BRAKES

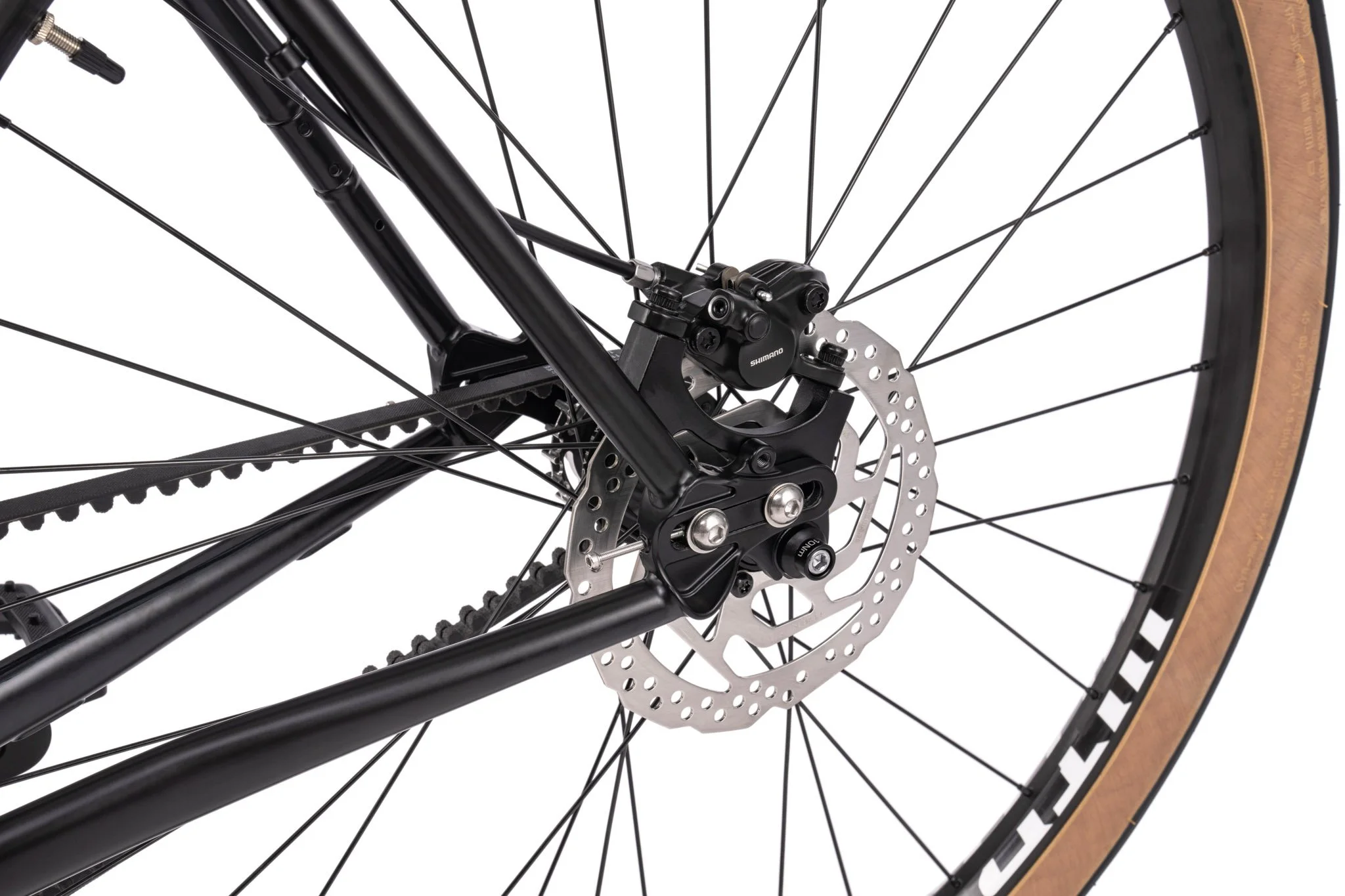

    Shimano hydraulic disc brakes with 160 mm rotors.

  • TIRES

    Comfortable WTB Horizon 650B x 47C tires and Éclat Slash pedals.

"Our low maintenance city runaround provides more fun than you could ever expect from such a practical bike."

SPECIFICATIONS

ModelOUTLAW
Color 1Matt Black
Color 2-
FrameDouble butted 4130 crmo, QR sliding dropouts, fender mounts, 68 mm BSA BB shell
Fork6061 aluminium, 1.1/2'' - 1.1/8'', with fender / rack mounts, internal hub dynamo cable routing
HandlebarBombtrack Trail flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise
GripsBombtrack Tab 129 mm grips
StemBombtrack Roam forged aluminium stem, -7°
HeadsetSealed external aheadset, 1.1/2'' - 1.1/8''
LeversShimano BL-M200 hydraulic brake levers
Shifter-
BrakesShimano BR-MT200 post mount hydraulic disc brake with
160 mm rotors
RotorShimano SM-RT26 160 mm rotors
CranksetBombtrack TAF19 aluminium crank, 24 mm spindle
BBBSA sealed BB, external cups
PedalsEclat Slash flatpedal
ChainGates Carbon CDN 115T belt
ChainringGates Carbon S300 CDX 55 T
CassetteGates Carbon CDX 20 T
Front derailleur-
Rear derailleur-
Front hubBombtrack Arc sealed hub, 6-bolt disc, hex key skewer
Rear hubBombtrack Arc sealed hub, 11-speed, 6-bolt disc, hex key skewer
Through axle-
Front rimWTB ST i21 double wall, TCS 2.0, 32h
Rear rimWTB ST i21 double wall, TCS 2.0, 32h
SaddleSeido Comp saddle
Seat postBombtrack Yew aluminium seatpost, 27.2 mm x 300 mm
Seat clampIntegrated seat clamp
Front tireWTB Horizon 650B x 47C
Rear tireWTB Horizon 650B x 47C
Fender-
RackBombtrack Deck frontrack, aluminium
Kickstand-
Light-
Weight11.2 kg (size M)
Weight frameset2840 g frame (size L, incl. seatclamp bolt, hanger) / 870 g fork (300 mm steerer)
Maximum rider weight120 kg incl. luggage
ASTM riding condition1


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelOUTLAW
BB standardBSA - 68 mm shell width
Headset standard (S.H.I.S.)EC34 / 28.6 | EC44 / 40
Headset crown race angle45°
Fork steerer inner diameter24.6 mm
Fork max tire clearance w/o fender650B x 47C / 700C x 35C
Frame max tire clearance w/o fender650B x 47C / 700C x 35C
Maximum chainring clearance 1x55 T Gates with 43.6 mm chainline
Maximum chainring clearance 2x-
Seat post diameter27.2 mm
Seat clamp diameter-
Front derailleur clamp diameter28.6 mm
Frame front derailleur compatibleyes
Brake mount frontFM
Brake mount rearPM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle-
Rear through axle-
ISO testing standardRoad
CrankarmS - M 170 mm / L - XL 175 mm
Q Factor170 mm
BCD crank130 mm, 5 bolts
Chainring offset43.6 mm
Chainline0 mm
Spoke length front wheel273 mm, 274 mm
Spoke length rear wheel274 mm, 272 mm
Spoke count (front / rear)32 / 32
ERD568 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem length80 mm
Stem angle-7°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset0 mm
Seat post length300 mm
Bike trailerapproved
Seat tube mounted child seatapproved
Derailleur hangerBT-DH-010
Frame small partsBT-CR-002
Hub end caps frontBT-HC-013
Hub end caps rearBT-HC-018
Cassette bodyBT-CB-009
Crankarm boltBT-CRP-001
Through axle front-
Through axle rear-


GEOMETRY



FRAME GEOMETRY

ModelOUTLAW
Bike SizeSMLXL
Wheel size650B650B650B650B
Seat Tube Length500530550580
Horizontal TT length544561582605
Seat Angle73.5°73.5°73.0°72.5°
Head Angle70.2°70.5°71.0°71.0°
Headtube Length130150170190
BB Drop70707070
Chainstay Length424424424424
Fork Offset48484848
Trail73716767
Wheelbase Length1024103910501068
Standover774798818841
Reach378389398410
Stack559580600619
Front Center610625636653
Axle to Crown395395395395
Minimum rider height 1600170017901880
Maximum rider height 1710181019001990


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

ModelOUTLAW
Bike SizeSMLXL
Handlebar typeFlatbarFlatbarFlatbarFlatbar
Width (drops)----
Width (barends)720720720720
Reach----
Flare----
Backsweep9°9°9°9°
Drop----
Upsweep4°4°4°4°
Rise7777
