BEYOND 2

Beyond 2 is just like our Beyond 1 only brighter! We’ve fitted it with a Supernova lighting system running off a KT dynamo hub for a permanent lighting solution. We also fitted a front luggage rack so it’s as equally capable of collecting the pizzas on the way home, as it is at packing your sleeping kit for a sneaky night out under the stars. The Sram Apex 1 x 11 mechanical transmission keeps things simple yet capable, and reliable stopping power comes from the simple to maintain TRP Spyre C brakes. 700 x 50C Panaracer Gravel King SK tyres open up a whole world of road and trail surfaces – the sky really is the limit with the Beyond 2.

METALLIC GREEN

HIGHLIGHTS

FRAME

Double butted crmo frame with rack and fender mounts and light cable routing.
WHEELS

XS and S with 27.5 wheels for proper fit without any compromises in geometry.
DRIVETRAIN

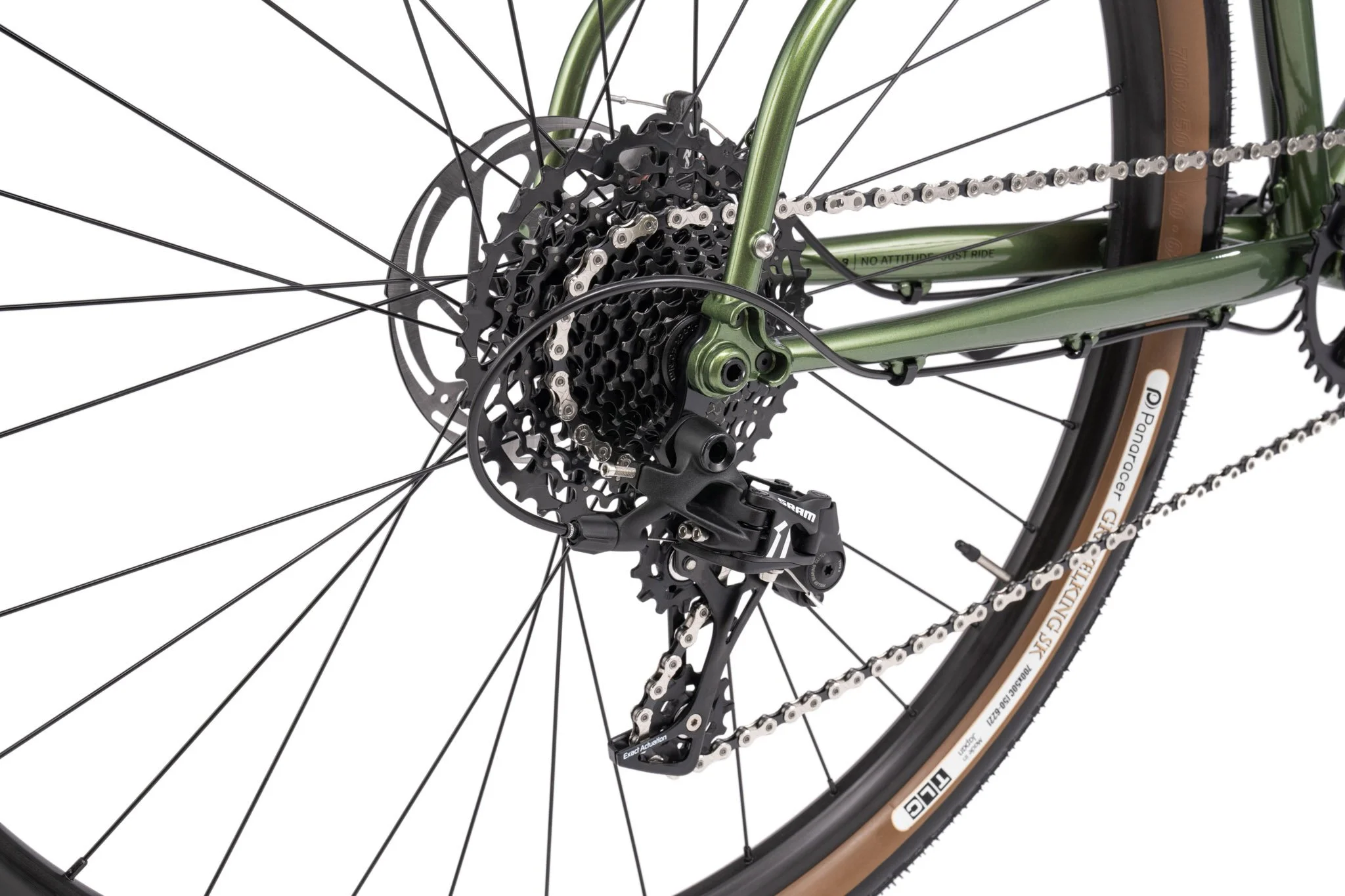

Sram Apex 1 x 11 groupset with wide range gearing and TRP Spyre brakes.
HUBS

Hub dynamo with Supernova E3 Pure 3 head lamp and E3 tail light.
RACK

Bombtrack Deck front rack included.
RIMS

Tubeless ready WTB ST i23 rims with Panaracer Gravelking SK 2.0’’ tires.

"...our continent-crossing adventure tourer with a specification based on feedback from users in the field."

SPECIFICATIONS

Model	BEYOND 2
Color 1	Metallic Green
Color 2	-
Frame	4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork	4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
Handlebar	Bombtrack Beyond travel bar, 31.8 mm, 30° flare
Grips	Bombtrack Command bar tape
Stem	Bombtrack Wander forged aluminium stem, +17°
Headset	Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Apex double tap mechanic
Shifter	Sram Apex double tap 1 x 11
Brakes	TRP Spyre C mechanic disc brakes
Rotor	TRP 180 mm front and 160 mm rear rotor
Crankset	Bombtrack Ames forged aluminium crank, 24 mm spindle
BB	BSA sealed BB, external cups
Pedals	-
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring	Aluminium, narrow-wide, 36 T
Cassette	Sram PG-1130 11-speed, 11 - 42 T
Front derailleur	-
Rear derailleur	Sram Apex 1, clutch, long cage
Front hub	KT dynamo hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	15 x 100 mm / 12 x 142 mm
Front rim	WTB ST i23 double wall, TCS 2.0, 32h
Rear rim	WTB ST i23 double wall, TCS 2.0, 32h
Saddle	Bombtrack Fuzz saddle
Seat post	Seido Beech 27.2 mm x 400 mm
Seat clamp	Bombtrack Origin 29.8 mm
Front tire	Panaracer Gravelking SK XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready
Rear tire	Panaracer Gravelking SK XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready
Fender	-
Rack	Bombtrack Deck frontrack, aluminium
Kickstand	-
Light	Supernova E3 Pure 3 front, E3 Tail Light 2 rear
Weight	13.2 kg (size M)
Weight frameset	2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	2

Final product may vary in appearance, finish and minor details.

BUILD INFOS

Model	BEYOND 2
BB standard	BSA - 73 mm shell width
Headset standard (S.H.I.S.)	EC34 / 28.6 \| EC44 / 40
Headset crown race angle	45°
Fork steerer inner diameter	25.4 mm
Fork max tire clearance w/o fender	XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
Frame max tire clearance w/o fender	XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
Maximum chainring clearance 1x	36 T with 48 mm chainline
Maximum chainring clearance 2x	42 / 28 T with 49.5 mm chainline
Seat post diameter	27.2 mm
Seat clamp diameter	29.8 mm
Front derailleur clamp diameter	28.6 mm
Frame front derailleur compatible	yes
Brake mount front	PM 6''
Brake mount rear	FM 140 / 160
Maximum rotor clearance front	203 mm
Maximum rotor clearance rear	160 mm
Front through axle	15 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	MTB
Crankarm	XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor	179 mm
BCD crank	104 mm, 4 bolts
Chainring offset	0 mm
Chainline	50 mm
Spoke length front wheel	XS - S 272 mm, 273 mm / M - XL 292 mm, 293 mm
Spoke length rear wheel	XS - S 274 mm, 272 mm / M - XL 293 mm, 291 mm
Spoke count (front / rear)	32 / 32
ERD	XS - S 570 mm / M - XL 606 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance / offset	46.8 mm center to center / 0 mm
Rear hub flange distance / offset	51 mm center to center / 8.8 mm
Stem length	XS - S 60 mm / M - L 80 mm / XL 90 mm
Stem angle	17°
Headset spacers	1 x 10 mm, 2 x 5 mm, XL: 1 x 10 mm, 1 x 5 mm
Seat post offset	24 mm
Seat post length	400 mm
Bike trailer	approved
Seat tube mounted child seat	approved
Derailleur hanger	BT-DH-008
Frame small parts	BT-CR-007
Hub end caps front	BT-HC-011
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	BT-CRP-001
Through axle front	BT-TA-F-602
Through axle rear	BT-TA-R-602

GEOMETRY

FRAME GEOMETRY

Model	BEYOND 2
Bike Size	XS	S	M	L	XL
Wheel size	27.5''	27.5''	29''	29''	29''
Seat Tube Length	400	440	480	520	560
Horizontal TT length	494	522	558	590	623
Seat Angle	75.0°	74.5°	73.5°	73.0°	72.5°
Head Angle	70.0°	70.5°	71.0°	72.0°	72.0°
Headtube Length	100	130	150	190	220
BB Drop	55	55	70	70	70
Chainstay Length	425	425	455	455	455
Fork Offset	50	50	50	50	50
Trail	73	70	73	67	67
Wheelbase Length	1000	1021	1065	1082	1109
Standover	727	761	802	842	873
Reach	349	364	379	392	411
Stack	538	568	604	646	675
Front Center	581	602	620	636	663
Axle to Crown	420	420	420	420	420
Minimum rider height	1500	1600	1700	1790	1880
Maximum rider height	1610	1710	1810	1900	1990

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Model	BEYOND 2
Bike Size	XS	S	M	L	XL
Handlebar type	Dropbar	Dropbar	Dropbar	Dropbar	Dropbar
Width (drops)	420	420	440	440	460
Width (barends)	594	594	614	614	634
Reach	85	85	85	85	85
Flare	30°	30°	30°	30°	30°
Backsweep	-	-	-	-	-
Drop	115	115	115	115	115
Upsweep	-	-	-	-	-
Rise	-	-	-	-	-
