ARISE GEARED
Is it a commuter, a delivery bike or a practical work bike? Our 2024 Arise Geared is all three and more. We use the same quality double-butted frame as all our Arise models but now with the addition of a Bombtrack Deck front rack, a Microshift Advent 1 x 9 drivetrain with an 11 – 42T cassette, flat bars and Shimano hydraulic brakes. Wide Vee Tire Speedster tyres are ideally suited to urban road surfaces, with excellent straight-line speed and edge grip for park and towpath ‘shortcuts’. The Arise Geared is the perfect bike for trips to the shops, commuting, or just loading it up and heading off into the woods for the weekend.
METALLIC BLACK
MATT PETROL BLUE
HIGHLIGHTS
-
![]()
FRAME
Double butted crmo frame with internal light cable routing.
-
![]()
WHEELS
XS and S with 650B wheels for proper fit without any compromises in geometry.
-
![]()
FORK
Crmo fork with internal light cable routing.
-
![]()
DRIVETRAIN
Microshift Advent clutched rear derailleur with 11 – 42 T cassette.
-
![]()

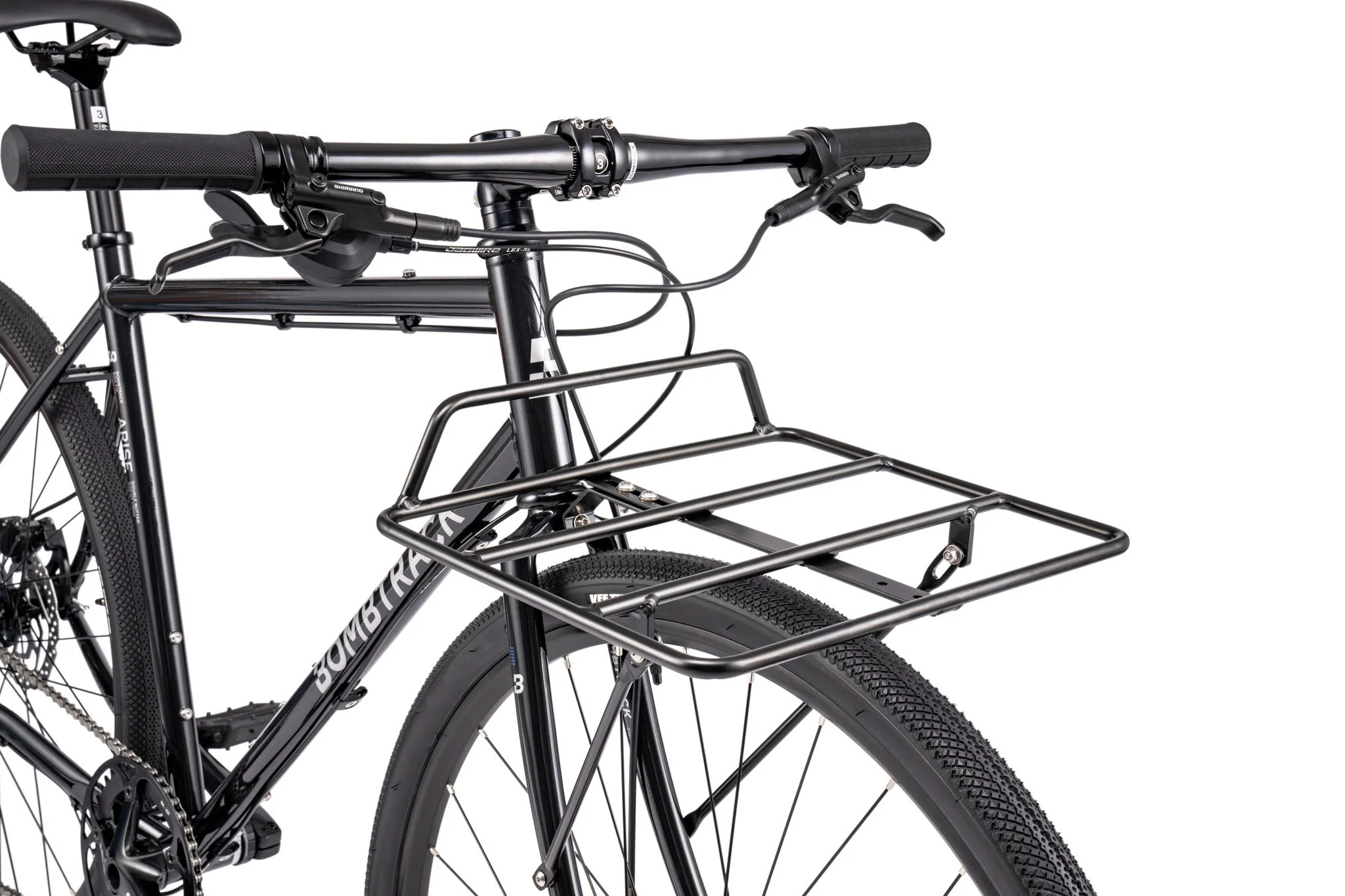

RACK
Bombtrack Deck front rack included.
-
![]()
RIMS
WTB ST tubeless ready rims.
"Offroad commuter, urban hauler, beer & café bike, a once-in-a-while gravel- / mountainbike, even a capable tourer.. – whatever you call it, whatever your proposed usage might be: this one probably can."
SPECIFICATIONS
| Model | ARISE GEARED |
|---|---|
| Color 1 | Metallic Black |
| Color 2 | Matt Petrol Blue |
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar | Bombtrack Origin flat bar, 31.8 mm, 8° backsweep |
| Grips | Bombtrack Scroll grips |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Shimano BL-M200 hydraulic brake levers |
| Shifter | Microshift Advent SL-M8195-R shifter 1 x 9 |
| Brakes | Shimano BR-MT200 post mount hydraulic disc brake |
| Rotor | Shimano SM-RT26 160 mm rotors |
| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | Wellgo B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 42 T, incl. chainguard |
| Cassette | Microshift Advent CS-H093 9-speed, 11 - 42 T |
| Front derailleur | - |
| Rear derailleur | Microshift Advent RD-M6195M wide range, clutch |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Fender | - |
| Rack | Bombtrack Deck frontrack, aluminium |
| Kickstand | - |
| Light | - |
| Weight | 12.6 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
| Model | ARISE GEARED |
|---|---|
| BB standard | BSA - 68 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 25.4 mm |
| Fork max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C |
| Frame max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C* |
| Maximum chainring clearance 1x | 44 T with 45 mm chainline |
| Maximum chainring clearance 2x | 52 / 36 T with 45 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 29.8 mm |
| Front derailleur clamp diameter | 28.6 mm |
| Frame front derailleur compatible | yes |
| Brake mount front | PM 6'' |
| Brake mount rear | PM 6'' |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Crankarm | XS 165 mm / S - M 170 mm / L - XL 175 mm |
| Q Factor | 170 mm |
| BCD crank | 130 mm, 5 bolts |
| Chainring offset | 0 mm |
| Chainline | 45 mm |
| Spoke length front wheel | XS - S 273 mm, 275 mm / M - XL 292 mm, 293 mm |
| Spoke length rear wheel | XS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm |
| Spoke count (front / rear) | 32 / 32 |
| ERD | XS - S 570 mm / M - XL 604 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | 90 mm |
| Stem angle | -7° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 24 mm |
| Seat post length | 300 mm |
| Bike trailer | approved |
| Seat tube mounted child seat | approved |
| Derailleur hanger | BT-DH-022 |
| Frame small parts | BT-CR-007 |
| Hub end caps front | BT-HC-012 |
| Hub end caps rear | BT-HC-017 |
| Cassette body | BT-CB-006 |
| Crankarm bolt | BT-CRP-001 |
| Through axle front | BT-TA-F-603 |
| Through axle rear | BT-TA-R-603 |
¹ Max tire clearance of 650B x 47C is possible, but depending on the tire and rim combination it might be necessary to move the sliding dropout to a rearwards position or accept tire clearance of less than 6 mm between tire and frame.
GEOMETRY
FRAME GEOMETRY
| Model | ARISE GEARED | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height * | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height * | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.
HANDLEBAR GEOMETRY
| Model | ARISE GEARED | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Handlebar type | Flatbar | Flatbar | Flatbar | Flatbar | Flatbar |
| Width (drops) | - | - | - | - | - |
| Width (barends) | 680 | 680 | 680 | 680 | 680 |
| Reach | - | - | - | - | - |
| Flare | - | - | - | - | - |
| Backsweep | 8° | 8° | 8° | 8° | 8° |
| Drop | - | - | - | - | - |
| Upsweep | - | - | - | - | - |
| Rise | - | - | - | - | - |
