AUDAX AL FRAMESET

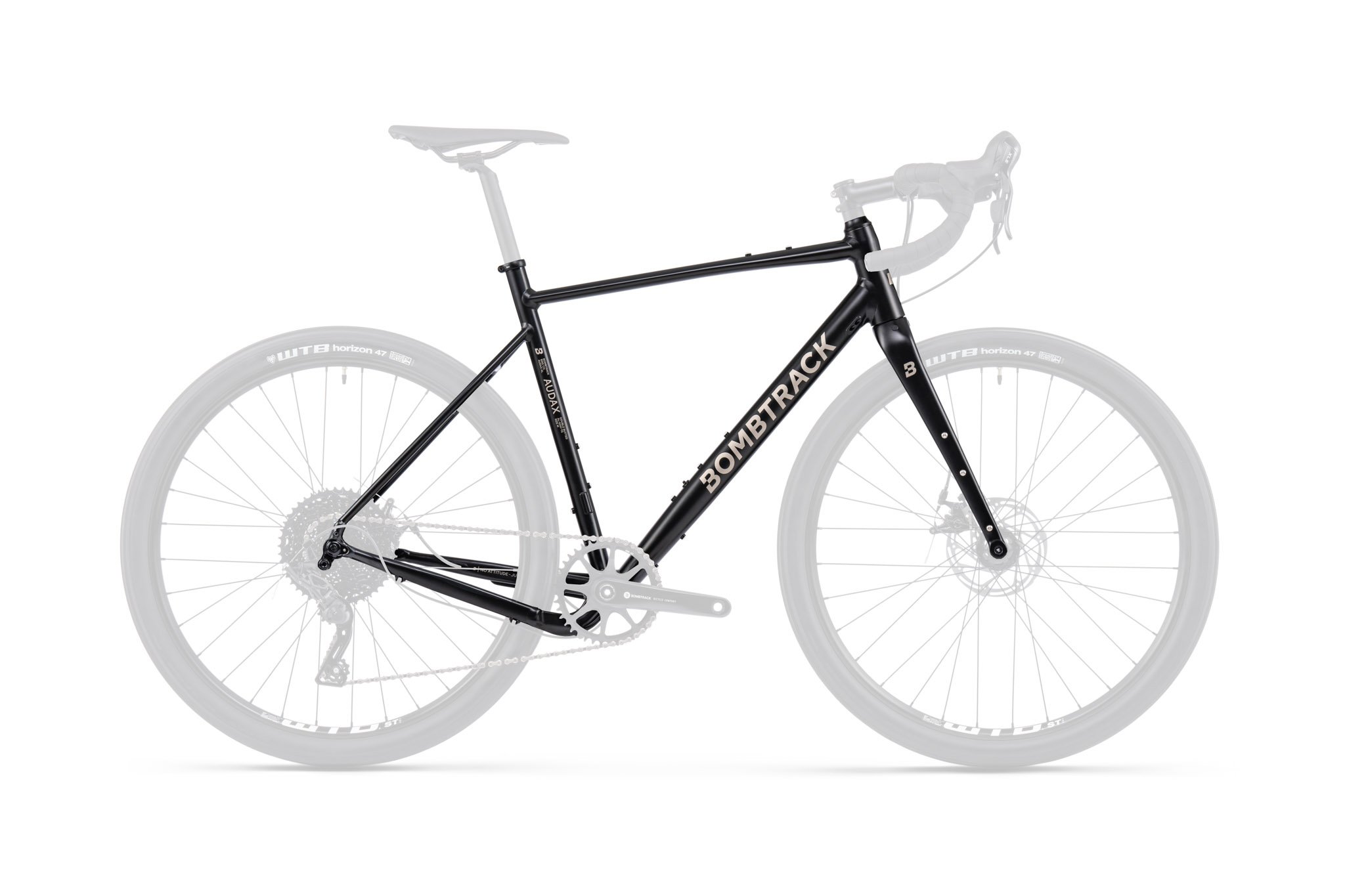

A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. The frame and fork have fender mounts and a multitude of mounting points for traveling fast and light. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.
A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. The frame and fork have fender mounts and a multitude of mounting points for traveling fast and light. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.
A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. The frame and fork have fender mounts and a multitude of mounting points for traveling fast and light. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.
“Suited to mixed riding, it reflects the real habits of many cyclists, rather than the smooth and repetitive terrain of televised road racing.”
SPECIFICATIONS
| Model | AUDAX AL |
|---|---|
| Color 1 | Matt Black |
| Color 2 | - |
| Frame | 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell |
| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'', with fender and cage mounts |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Seat clamp | Bombtrack Prime 31.8 mm |
| Rack | - |
| Weight frameset | 1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
BUILD INFO
| Model | AUDAX AL |
|---|---|
| BB standard | T47 - 86.5 mm shell width |
| Headset standard (S.H.I.S.) | IS42 / 28.6 | IS52 / 40 |
| Headset crown race angle | 36° |
| Fork steerer inner diameter | 23.6 mm |
| Fork max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Frame max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Maximum chainring clearance 1x | 42 T with 45 mm chainline |
| Maximum chainring clearance 2x | 50 / 34 T with 43.5 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 31.8 mm |
| Front derailleur clamp diameter | integrated FD hanger |
| Frame front derailleur compatible | yes |
| Brake mount front | FM 140 / 160 |
| Brake mount rear | FM 140 / 160 |
| Maximum rotor clearance front | 160 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Bike trailer | approved |
| Seat tube mounted child seat | not approved |
| Derailleur hanger | BT-DH-018 |
| Frame small parts | BT-CR-013 |
| Through axle front | BT-TA-F-601 |
| Through axle rear | BT-TA-R-601 |
GEOMETRY
FRAME GEOMETRY
| Model | AUDAX AL | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 650B | 650B | 650B |
| Seat Tube Length | 470 | 500 | 530 | 560 | 590 |
| Horizontal TT length | 505 | 527 | 551 | 569 | 592 |
| Seat Angle | 75.0° | 74.5° | 74.0° | 74.0° | 73.5° |
| Head Angle | 71.0° | 72.0° | 72.0° | 72.0° | 72.0° |
| Headtube Length | 100 | 120 | 150 | 180 | 205 |
| BB Drop | 70 | 68 | 68 | 65 | 65 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 |
| Fork Offset | 51 | 51 | 51 | 51 | 51 |
| Trail | 64 | 58 | 58 | 58 | 58 |
| Wheelbase Length | 989 | 998 | 1019 | 1039 | 1057 |
| Standover | 728 | 754 | 782 | 812 | 838 |
| Reach | 368 | 379 | 390 | 401 | 411 |
| Stack | 512 | 533 | 561 | 587 | 611 |
| Front Center | 579 | 588 | 608 | 628 | 645 |
| Axle to Crown | 385 | 385 | 385 | 385 | 385 |
| Minimum rider height | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height | 1610 | 1710 | 1810 | 1900 | 1990 |
