BEYOND JUNIOR
We’ve not forgotten those smaller explorers out there either. The Beyond Junior offers a scaled-down version of our Beyond geometry with a low standover height so they can have their own mini adventure or join in on a group trip. Our aluminium frame has all the mounts you would expect from us, as does the aluminium fork, so they can carry as much or as little as they want. Microshift Advent 9 speed 11 - 42T gearing is matched to 380 mm Bombtrack Beyond travel bars for exceptional control for smaller hands and narrower shoulders. Wheels are 24’’ with QR’s and shod with Kenda Small Block Eight 24 x 1.95 for a perfect balance between fast and grippy.
COBALT TEAL
HIGHLIGHTS
"Relaxed and confident, young riders get big capable tyres, wide flared bars and short stems for control..."
SPECIFICATIONS
Model | BEYOND JUNIOR |
---|---|
Color 1 | Cobalt Teal |
Color 2 | - |
Frame | 6061 aluminium, QR, rack / fender mounts, 68 mm BSA BB shell |
Fork | 6061 aluminium, QR, fender / rack / triple cage mounts, internal hub dynamo cable routing |

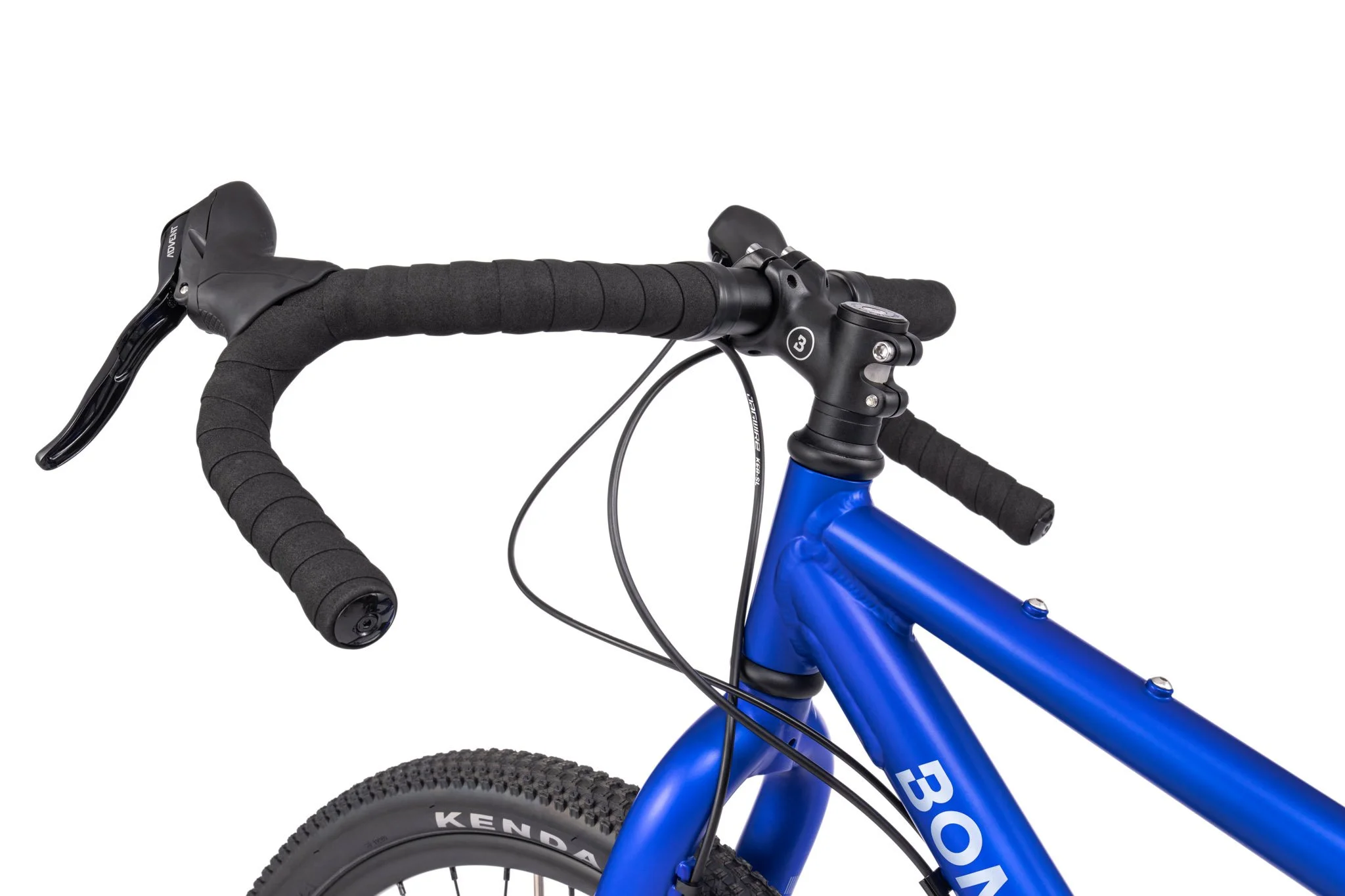

Handlebar | Bombtrack Beyond travel bar, 31.8 mm, 30° flare |
Grips | Bombtrack Control bar tape |
Stem | Bombtrack Wander forged aluminium stem, +17° |
Headset | Neco H282 sealed external aheadset, 1.1/8'' |
Levers | Microshift Advent SB-M090 dual control lever mechanic |
Shifter | Microshift Advent SB-M090 dual control lever 1 x 9 |
Brakes | Tektro Mira F / Lyra R mechanic disc brake with 160 mm F / 140 mm R rotors |
Rotor | Tektro 160 mm front and 140 mm rear rotor |
Crankset | Bombtrack Mach square taper crank |
BB | BSA sealed BB, 118 mm, square taper |
Pedals | Wellgo B109N flat pedal |
Chain | KMC X9 chain, 1/2'' x 11/128'', 98L |
Chainring | Forged steel, narrow wide, 32 T |
Cassette | Microshift CS-H093 9-speed, 11 - 42 T |
Front derailleur | - |
Rear derailleur | Microshift RD-M6195M, clutch |
Front hub | Bombtrack Arc sealed hub, 6-bolt disc, hex key skewer |
Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc, hex key skewer |
Through axle | - |
Front rim | Bombtrack TX20 double wall, i19, 32h |
Rear rim | Bombtrack TX20 double wall, i19, 32h |
Saddle | Bombtrack Drift Saddle |
Seat post | Seido Beech 27.2 mm x 400 mm |
Seat clamp | Bombtrack Origin 31.8 mm |
Front tire | Kenda Small Block Eight, 24" x 1.95" |
Rear tire | Kenda Small Block Eight, 24" x 1.95" |
Fender | - |
Rack | - |
Kickstand | - |
Light | - |
Weight | 10.9 kg (size M) |
Weight frameset | 1640 g frame (size XXS, incl. hanger) / 810 g fork (300 mm steerer) |
Maximum rider weight | 90 kg incl. luggage |
ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
Model | BEYOND JUNIOR |
---|---|
BB standard | BSA - 68 mm shell width |
Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
Headset crown race angle | 45° |
Fork steerer inner diameter | 24.6 mm |
Fork max tire clearance w/o fender | 24'' x 2.1" |
Frame max tire clearance w/o fender | 24'' x 2.1'' |
Maximum chainring clearance 1x | 36 T with 48 mm chainline |
Maximum chainring clearance 2x | 42 / 28 T with 49.5 mm chainline |
Seat post diameter | 27.2 mm |
Seat clamp diameter | 31.8 mm |
Front derailleur clamp diameter | 31.8 mm |
Frame front derailleur compatible | yes |
Brake mount front | PM |
Brake mount rear | FM |
Maximum rotor clearance front | 180 mm |
Maximum rotor clearance rear | 160 mm |
Front through axle | - |
Rear through axle | - |
ISO testing standard | MTB |
Crankarm | 152 |
Q Factor | 158 |
BCD crank | 104 |
Chainring offset | 45 mm |
Chainline | 0 mm |
Spoke length front wheel | 233 mm, 234 mm |
Spoke length rear wheel | 234 mm, 232 mm |
Spoke count (front / rear) | 32 / 32 |
ERD | tba |
Front hub PCD | 58 mm |
Rear hub PCD | 58 mm |
Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
Stem length | 60 mm |
Stem angle | 17° |
Headset spacers | 1 x 10 mm, 2 x 5 mm |
Seat post offset | 24 |
Seat post length | 400 mm |
Bike trailer | not approved |
Seat tube mounted child seat | not approved |
Derailleur hanger | BT-DH-019 |
Frame small parts | BT-CR-007 |
Hub end caps front | BT-HC-013 |
Hub end caps rear | BT-HC-018 |
Cassette body | BT-CB-009 |
Crankarm bolt | - |
Through axle front | - |
Through axle rear | - |
GEOMETRY
FRAME GEOMETRY
Model | BEYOND JUNIOR |
---|---|
Bike Size | XXS |
Wheel size | 24'' |
Seat Tube Length | 330 |
Horizontal TT length | 474 |
Seat Angle | 73.5° |
Head Angle | 71.5° |
Headtube Length | 100 |
BB Drop | 30 |
Chainstay Length | 390 |
Fork Offset | 45 |
Trail | 55 |
Wheelbase Length | 919 |
Standover | 666 |
Reach | 326 |
Stack | 498 |
Front Center | 531 |
Axle to Crown | 400 |
Minimum rider height | 1350 |
Maximum rider height | 1550 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.
HANDLEBAR GEOMETRY
Model | BEYOND JUNIOR |
---|---|
Bike Size | XXS |
Handlebar type | Dropbar |
Width (drops) | 380 |
Width (barends) | 520 |
Reach | 85 |
Flare | 30° |
Backsweep | - |
Drop | 115 |
Upsweep | - |
Rise | - |
