BEYOND AL APEX

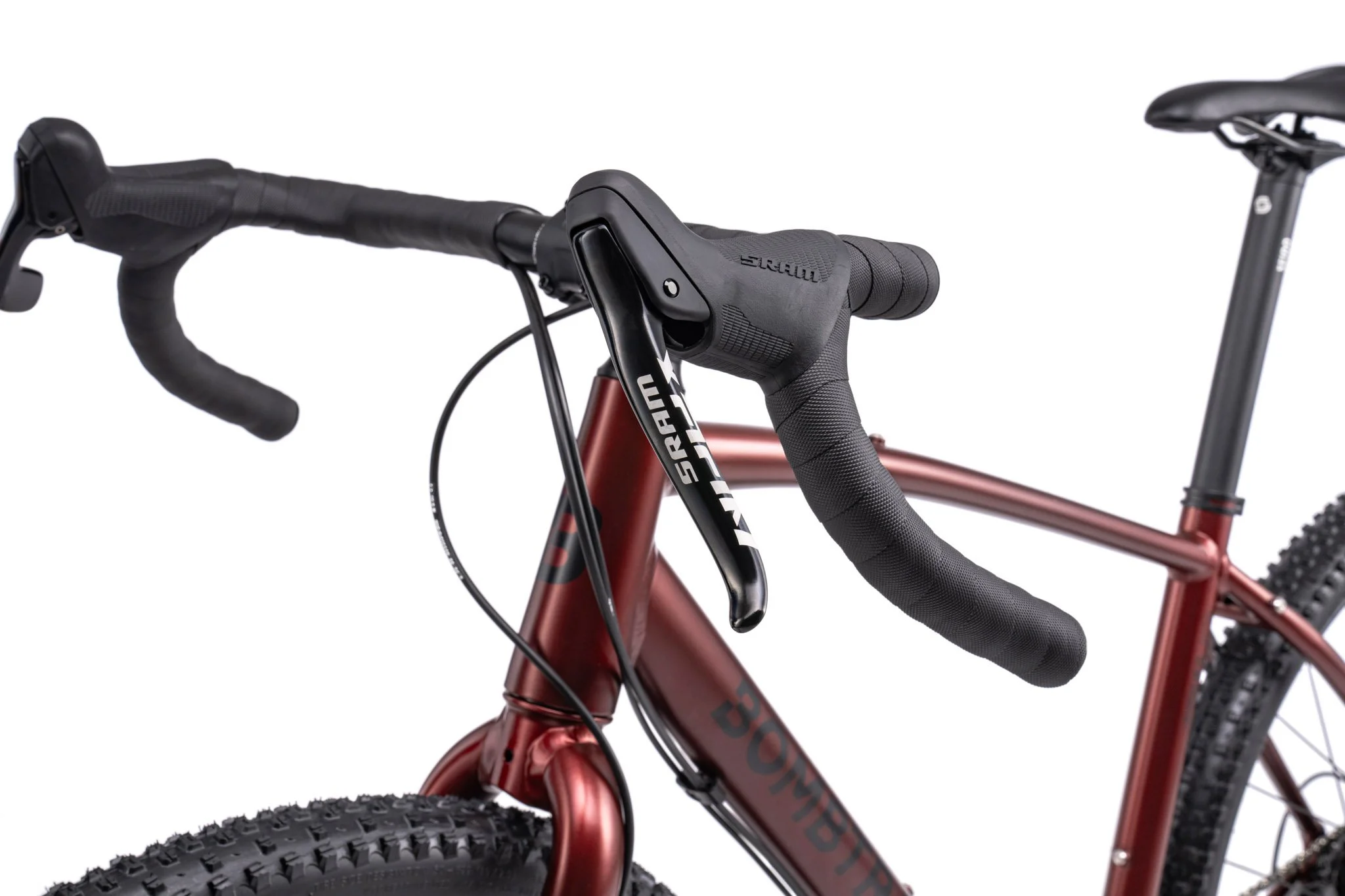

The Beyond AL is our lightweight hydro-formed aluminium Beyond. It features all our trademark Bombtrack ingredients, such as internal dynamo cable routing, a multitude of mounts on both the frame and on the aluminium fork, plus dropper post compatibility. Sram’s Apex 1 x 11 mechanical setup provides the shifting duties, while TRP callipers with 180 / 160 mm rotors control your momentum. Small bikes come with 27.5’’ wheels, M - XL bikes are fitted with 29’’ wheels and both wheelsets have tubeless-ready WTB i23 rims wrapped in all-condition Ranger 2.0’’ tyres allowing you to just get on with riding whatever the surface.

MATT METALLIC RED

HIGHLIGHTS

  • FRAME

    Lightweight aluminium frame with T47 bottom bracket.

  • WHEELS

    Size S with 27.5 wheels for proper fit without any compromises in geometry.

  • FORK

    Fork with internal light cable routing and fender, rack and triple cage mounts.

  • MOUNTS

    Toptube bag mounts, triple mounts on downtube and seattube and bottle cage mounts underneath the downtube.

  • DRIVETRAIN

    Sram Apex 1 x 11 groupset with TRP Spyre brakes and Jagwire KEB-SL compressionless cable housing.

  • RIMS

    Tubeless ready WTB ST i23 rims with tubeless ready WTB Ranger tires.

"With a full range of mounts and braze-ons across its fork and frame, it's happy to accept either panniers or bikepacking bags."

SPECIFICATIONS

ModelBEYOND AL APEX
Color 1Matt Metallic Red
Color 2-
Frame6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell
Fork6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
HandlebarBombtrack Tackle gravel bar, 31.8 mm, 25° flare
GripsBombtrack Command bar tape
StemBombtrack Tramp forged aluminium stem, 3°
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
LeversSram Apex double tap mechanic
ShifterSram Apex double tap 1 x 11
BrakesTRP Spyre C mechanic disc brakes
RotorTRP 180 mm front and 160 mm rear rotor
CranksetBombtrack Ames forged aluminium crank, 24 mm spindle
BBBombtrack T47 internal sealed BB for 24 mm spindle
Pedals-
ChainKMC X11 chain, 1/2'' x 11/128'', 114L
ChainringSteel, narrow-wide, 36 T
CassetteSram PG-1130 11-speed, 11 - 42 T
Front derailleur-
Rear derailleurSram Apex 1, clutch, long cage
Front hubBombtrack Arc sealed hub, 6-bolt disc
Rear hubBombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimWTB ST i23 double wall, TCS 2.0, 32h
Rear rimWTB ST i23 double wall, TCS 2.0, 32h
SaddleBombtrack Fuzz saddle
Seat postSeido Yew aluminium seatpost, 31.6 mm x 400 mm
Seat clampBombtrack Prime 34.9 mm
Front tireWTB Ranger TCS Light / Fast Rolling S - S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Rear tireWTB Ranger TCS Light / Fast Rolling S - S 27.5'' x 2.0'' /
M - XL 29'' x 2.0'', tubeless ready
Fender-
Rack-
Kickstand-
Light-
Weighttba
Weight framesettba
Maximum rider weight140 kg incl. luggage
ASTM riding condition2


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelBEYOND AL APEX
BB standardT47 - 86.5 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle45°
Fork steerer inner diameter24.6 mm
Fork max tire clearance w/o fender27.5'' x 2.25'' / 29'' x 2.1''
Frame max tire clearance w/o fenderS 27.5'' x 2.25'' / M - L 29'' x 2.25''
Maximum chainring clearance 1x36 T with 50 mm chainline
Maximum chainring clearance 2x40 / 28 T with 50 mm chainline
Seat post diameter31.8 mm
Seat clamp diameter34.9 mm
Front derailleur clamp diameter34.9 mm
Frame front derailleur compatibleyes
Brake mount frontPM 6''
Brake mount rearFM 140 / 160
Maximum rotor clearance front203 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardMTB
CrankarmS - M 170 mm / L 175 mm
Q Factor179 mm
BCD crank104 mm, 4 bolts
Chainring offset0 mm
Chainline50 mm
Spoke length front wheelS 272 mm / M - XL 292 mm
Spoke length rear wheelS 274 mm, 272 mm / M - XL 293 mm, 291 mm
Spoke count (front / rear)32 / 32
ERDS - S 570 mm / M - XL 606 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem lengthS - M 50 mm / L - XL 80 mm
Stem angle3°
Headset spacersS - L 1 x 10 mm, 2 x 5 mm / XL 1 x 10 mm, 1 x 2 mm
Seat post offset0 mm
Seat post length400 mm
Bike trailerapproved
Seat tube mounted child seatnot approved
Derailleur hangerBT-DH-018
Frame small partsBT-CR-007
Hub end caps frontBT-HC-012
Hub end caps rearBT-HC-017
Cassette bodyBT-CB-006
Crankarm boltBT-CRP-001
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-601


GEOMETRY



FRAME GEOMETRY

ModelBEYOND AL APEX
Bike SizeSMLXL
Wheel size27.5''29''29''29''
Seat Tube Length440480520560
Horizontal TT length546567597626
Seat Angle74°74°74°74°
Head Angle70°70,5°70,5°70.5°
Headtube Length140160200230
BB Drop60747474
Chainstay Length420445445445
Fork Offset53535353
Trail70757575
Wheelbase Length1040107711091140
Standover775821859893
Reach382394413´434
Stack569604642670
Front Center627642674705
Axle to Crown420420420420
Minimum rider height 1600170017901880
Maximum rider height 1710181019001990


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

ModelBEYOND AL APEX
Bike SizeSMLXL
Handlebar typeDropbarDropbarDropbarDropbar
Width (drops)420440440440
Width (barends)530550550550
Reach77777777
Flare25°25°25°25°
Backsweep----
Drop128128128128
Upsweep----
Rise----
