CALE E

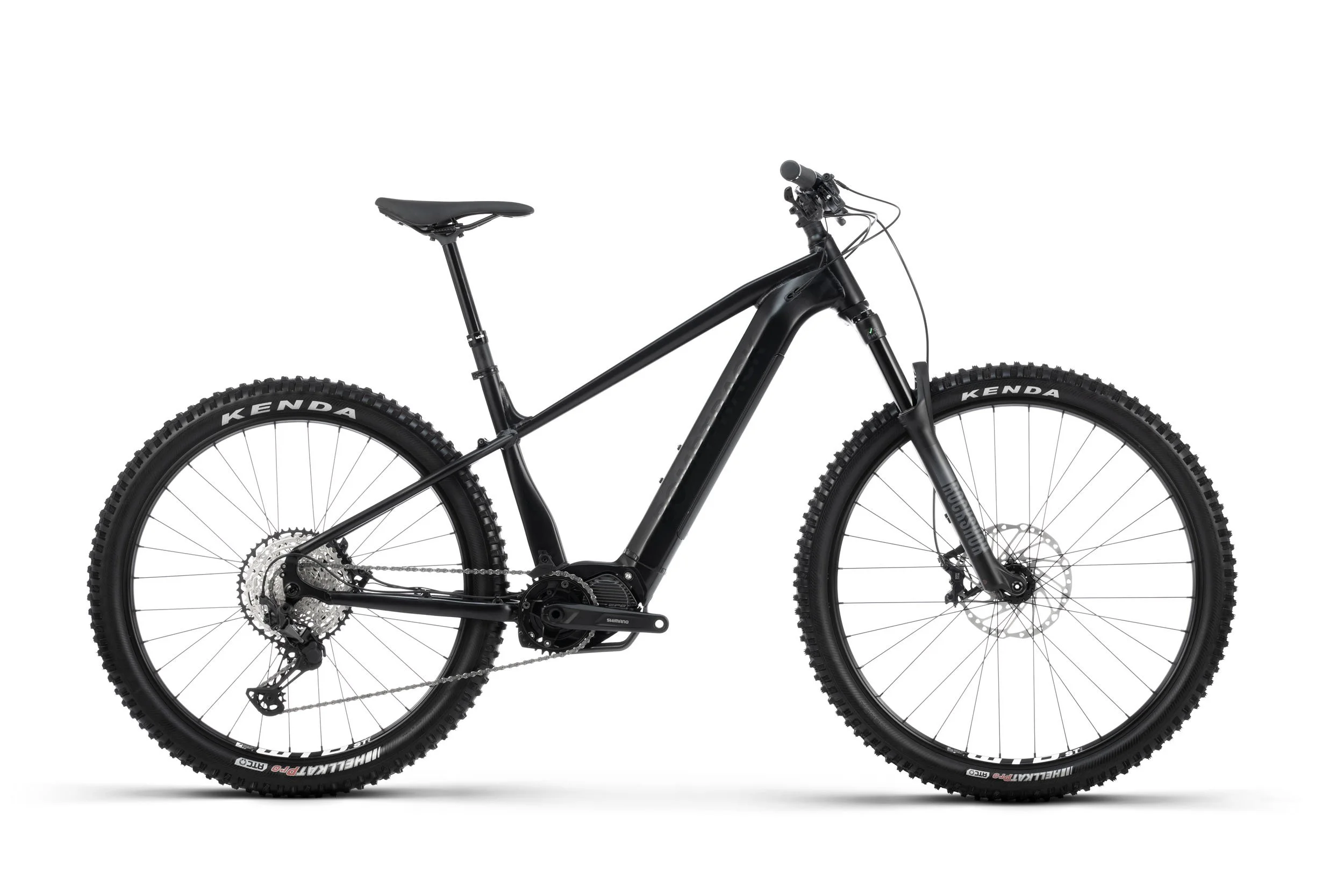

A Shimano EP8 mid-engine and aluminium frame blended with Shimano SLX and Deore XT parts, the Cale E is our first bike with a mullet setup. Running a 29’’ x 2.4’’ tire up front and a 27.5’’ x 2.6’’ tire at the rear, it combines superb rollover characteristics with playful manners.

MATT BLACK

HIGHLIGHTS

  • FRAME

    Triple butted aluminium frame with mid engine mount for Shimano EP8 motor.

  • FORK

    RockShox 35 Gold RL 130 mm travel suspension fork with 35 mm stanchions.

  • WHEELS

    Mullet wheel setup with 29'' front wheel and 27.5'' rear wheel.

  • COCKPIT

    Bombtrack Illusion 35 mm oversized handlebar, 800 mm wide and Seido Drift stem.

  • DRIVETRAIN

    Shimano Deore XT 1 x 12 shifter and rear derailleur.

  • DROPPER POST

    KS E20i 30.9 mm dropper post with 150 mm travel.

"…of course, the Cale E wouldn’t be a Bombtrack if it wasn’t ready for adventure too."

SPECIFICATIONS

ModelCALE E
Color 1Matt Black
Color 2-
Frame6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, Shimano EP8 mid engine mount, UDH derailleur hanger,
ForkRockShox 35 Gold RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
HandlebarBombtrack Illusion flat bar, aluminium, 35 mm clamping diameter
GripsBombtrack Return 135 mm lock on grips
StemSeido Drift aluminium stem, 35 mm clamping diameter
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
LeversShimano SLX BL-M7100 hydraulic brake levers
ShifterShimano Deore XT SL-M8100-IR 1 x 12
BrakesShimano SLX BR-M7100 post mount hydraulic disc brake
RotorShimano SM-RT64 203 mm front and RT-EM600 180 mm rear rotor with integrated speed sensor magnet
CranksetShimano Deore XT FC-EM600 forged aluminium crank
BB-
Pedals-
ChainShimano SLX CN-M7100 chain, 1/2'' x 11/128'', 124L
ChainringShimano EP8 SM-CRE80-12B CNC machined aluminium, narrow-wide, 34 T
CassetteShimano SLX CS-M7100-12, 12-speed, 10 - 51 T
Front derailleur-
Rear derailleurShimano Deore XT RD-M8100-SGS, clutch
Front hubSeido Boost sealed hub, centerlock disc
Rear hubSeido Grad sealed hub, Microspline, steel axle, centerlock disc
Through axle15 x 110 mm / 12 x 148 mm
Front rimWTB ST i30 double wall, TCS 2.0, 32h
Rear rimWTB ST i30 double wall, TCS 2.0, 32h
SaddleSeido Origin saddle
Seat postKS E20i dropper seatpost, 30.9 mm, 150 mm travel, 474 mm length
Seat clampBombtrack Prime 34.9 mm
Front tireKenda Hellcat Pro AEC 29'' x 2.4" TLR, tubeless ready
Rear tireKenda Hellcat Pro AEC 27.5'' x 2.6" TLR, tubeless ready
Fender-
Rack-
Kickstand-
Light-
Weight22.2 kg (size M)
Weight frameset-
Maximum rider weight140 kg incl. luggage
ASTM riding condition4
Drive unitShimano DU-EP801 mid-drive engine
BatteryShimano BT-EN805 fully integrated battery, 504 Wh
ComputerShimano SC-EN500
ChargerShimano EC-E8004-1


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelCALE E
BB standard-
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle45°
Fork steerer inner diameter24.6 mm
Fork max tire clearance w/o fender27.5'' x 2.8'' / 29'' x 2.6''
Frame max tire clearance w/o fender27.5'' x 2.6''
Maximum chainring clearance 1x34 T with 53 mm chainline
Maximum chainring clearance 2x-
Seat post diameter30.9 mm
Seat clamp diameter34.9 mm
Front derailleur clamp diameter-
Frame front derailleur compatibleno
Brake mount frontPM 7''
Brake mount rearPM 6''
Maximum rotor clearance front220 mm
Maximum rotor clearance rear203 mm
Front through axle15 mm x 110 mm, 1.5 thread pitch
Rear through axle12 mm x 148 mm, 1.0 thread pitch
ISO testing standardMTB
CrankarmS - M 170 mm / L - XL 175 mm
Q Factor177 mm
BCD crank104 mm, 4 bolts
Chainring offset0 mm
Chainline53 mm
Spoke length front wheeltba
Spoke length rear wheeltba
Spoke count (front / rear)32 / 32
ERD607 mm / 568 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset59.1 mm center to center / 2.5 mm
Rear hub flange distance / offset58.3 mm center to center / 9.4 mm
Stem length40 mm
Stem angle0°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset0 mm
Seat post length474 mm, 150 mm travel
Bike trailernot approved
Seat tube mounted child seatnot approved
Derailleur hangerSram UDH
Frame small partstba
Hub end caps fronttba
Hub end caps reartba
Cassette bodytba
Crankarm bolt-
Through axle frontRockShox Maxle Stealth 15 x 110
Through axle rearBT-TA-R-608


GEOMETRY



FRAME GEOMETRY

ModelCALE E
Bike SizeSMLXL
Wheel size29'' / 27.5''29'' / 27.5''29'' / 27.5''29'' / 27.5''
Seat Tube Length390430460500
Horizontal TT length601625643665
Seat Angle75°75°75°75°
Head Angle66°66°66°66°
Headtube Length110120130140
BB Drop ²45454545
Chainstay Length440440440440
Fork Offset44444444
Trail118118118118
Wheelbase Length1169119512141238
Standover780789808832
Reach438460475495
Stack608617626635
Front Center734759778802
Axle to Crown ²509509509509
Minimum rider height ¹1600170017901880
Maximum rider height ¹1710181019001990


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

ModelCALE E
Bike SizeSMLXL
Handlebar typeFlatbarFlatbarFlatbarFlatbar
Width (drops)----
Width (barends)800800800800
Reach----
Flare----
Backsweep8°8°8°8°
Drop----
Upsweep6°6°6°6°
Rise18181818
