BEYOND 1
The Beyond 1 serves as the perfect first bike for fledgling adventurists. With tyres as wide as a mountain bike accompanied by a 28 / 40T chainset, this bike will be able to reach wherever you’ve plotted on the map. Leverage-boosting bars provide added control, and an eye-watering selection of mounting points mean you won’t need to leave anything at home. Its simplicity makes it easy to service, too.
Made to cross countries and continents via all kinds of roads and trackways...
HIGHLIGHTS
GLOSSY METALLIC BLACK
SPECIFICATIONS
BEYOND 1 | |
---|---|
Color 1 | Glossy Metallic Black |
Color 2 | - |
Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
Handlebar | BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
Grips | BOMBTRACK COMMAND bar tape |
Stem | BOMBTRACK WANDER forged aluminium stem, +17° |
Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
Levers | SRAM Apex double tap mechanic |
Shifter | SRAM Apex double tap 2 x 10 |
Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |

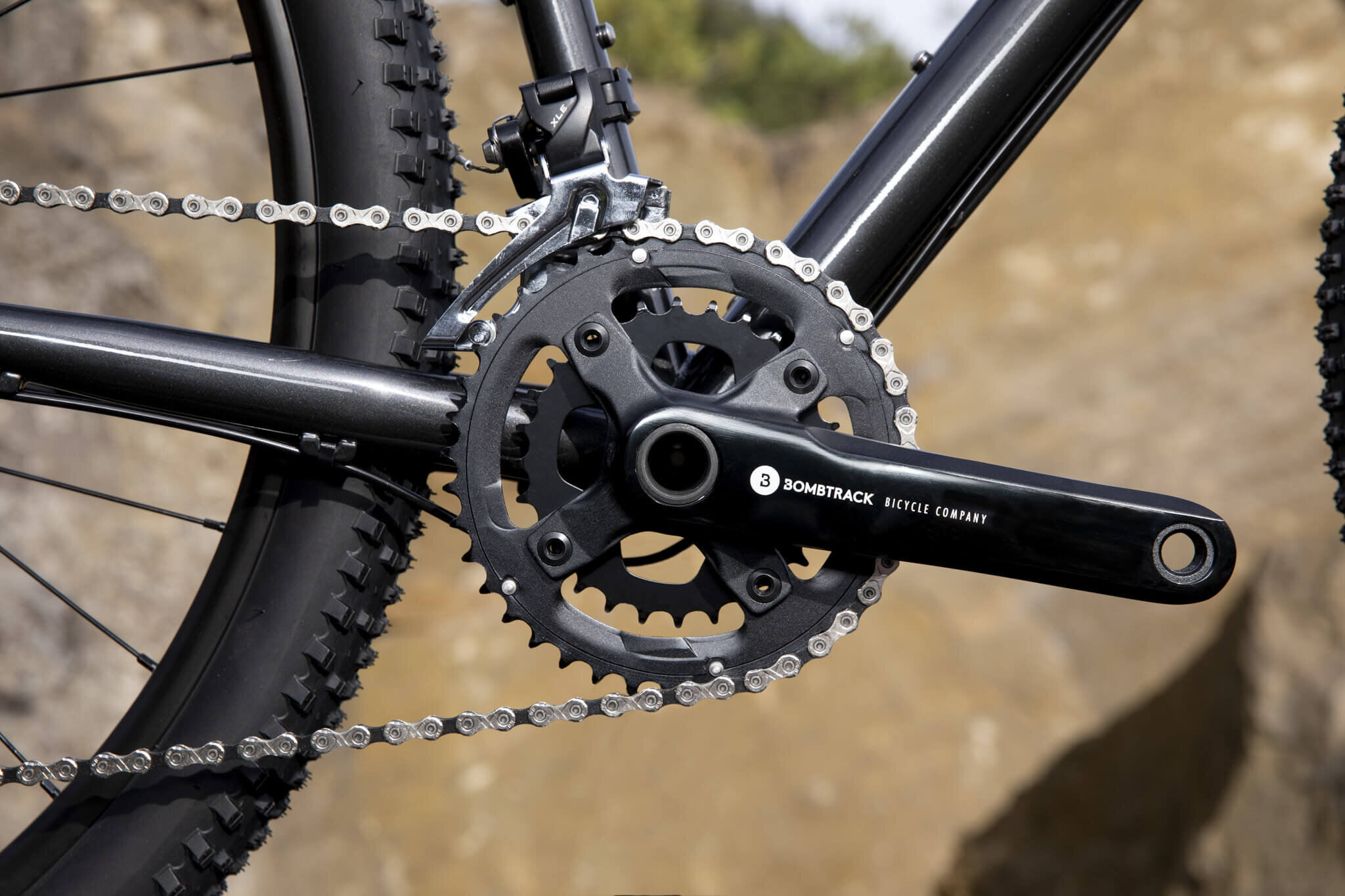

Crankset | BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
BB | BSA sealed BB, external cups |
Pedals | - |
Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
Chainring | Aluminium / Steel, 40 / 28 T |
Cassette | SRAM PG-1020 10-speed, 11 - 36 T |
Front derailleur | Microshift FD-M612-B |
Rear derailleur | SRAM GX, long cage |
Front hub | BOMBTRACK GRAD sealed hub, 6-bolt disc |
Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
Through axle | 15 x 100 mm / 12 x 142 mm |
Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
Saddle | BOMBTRACK FUZZ |
Seat post | BOMBTRACK BEECH 27.2 mm x 400 mm |
Seat clamp | BOMBTRACK ORIGIN 29.8 mm |
Front tire | WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
Rear tire | WTB RANGER TCS LIGHT / FAST ROLLING XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready |
Fender | - |
Rack | - |
Kickstand | - |
Light | - |
Weight | 12.9 kg (size M) |
Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
Maximum rider weight | 140 kg incl. luggage |
ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
Model | BEYOND 1 |
---|---|
BB standard | BSA - 73 mm shell width |
Headset standard (S.H.I.S.) | EC34 / 28.6 | EC44 / 40 |
Headset crown race angle | 45° |
Fork max tire clearance w/o fender | XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1'' |
Frame max tire clearance w/o fender | XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1'' |
Maximum chainring clearance 1x | 36 T with 48 mm chainline |
Maximum chainring clearance 2x | 42 / 28 T with 49.5 mm chainline |
Seat post diameter | 27.2 mm |
Seat clamp diameter | 29.8 mm |
Front derailleur clamp diameter | 28.6 mm |
Brake mount front | PM |
Brake mount rear | FM |
Maximum rotor clearance front | 203 mm |
Maximum rotor clearance rear | 180 mm |
Front through axle | 15 mm x 100 mm, 1.5 thread pitch |
Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
ISO testing standard | MTB |
Crankarm | XS 165 mm / S - M 170 mm / L - XL 175 mm |
Q Factor | 179 mm |
BCD crank | 104 mm / 64 mm, 4 bolts |
Chainline | 49.5 mm |
Chainring offset | 0 mm |
Spoke length front wheel | XS - S 272mm, 273 mm / M - XL 292 mm, 293 mm |
Spoke length rear wheel | XS - S 273mm, 272 mm / M - XL 293 mm, 291 mm |
Spoke count (front / rear) | 32 / 32 |
ERD | XS - S 570 mm / M - XL 606 mm |
Front hub PCD | 58 mm |
Rear hub PCD | 58 mm |
Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
Stem length | XS - S 60 mm / M - L 80 mm / XL 90 mm |
Stem angle | 17° |
Headset spacers | 1 x 10 mm, 2 x 5 mm, XL: 1 x 10 mm, 1 x 5 mm |
Seat post offset | 24 mm |
Seat post length | 415 mm |
Derailleur hanger | BT-DH-008 |
Frame small parts | BT-CR-007 |
Hub end caps front | BT-HC-015 |
Hub end caps rear | BT-HC-017 |
Cassette body | BT-CB-006 |
Crankarm bolt | BT-CRP-001 |
Through axle front | BT-TA-F-602 |
Through axle rear | BT-TA-R-602 |
GEOMETRY
FRAME GEOMETRY
Model | BEYOND 1 | ||||
---|---|---|---|---|---|
Bike Size | XS | S | M | L | XL |
Wheel size | 27.5'' | 27.5'' | 29'' | 29'' | 29'' |
Seat Tube Length | 400 | 440 | 480 | 520 | 560 |
Horizontal TT length | 494 | 522 | 558 | 590 | 623 |
Seat Angle | 75.0° | 74.5° | 73.5° | 73.0° | 72.5° |
Seat Angle effective | 75.0° | 74.5° | 73.5° | 73.0° | 72.5° |
Head Angle | 70.0° | 70.5° | 71.0° | 72.0° | 72.0° |
Headtube Length | 100 | 130 | 150 | 190 | 220 |
BB Drop | 55 | 55 | 70 | 70 | 70 |
Chainstay Length | 425 | 425 | 455 | 455 | 455 |
Fork Offset | 50 | 50 | 50 | 50 | 50 |
Trail | 73 | 70 | 73 | 67 | 67 |
Wheelbase Length | 1000 | 1021 | 1065 | 1082 | 1109 |
Standover | 727 | 761 | 802 | 842 | 873 |
Reach | 349 | 364 | 379 | 392 | 411 |
Stack | 538 | 568 | 604 | 646 | 675 |
Front Center | 581 | 602 | 620 | 636 | 663 |
Axle to Crown | 420 | 420 | 420 | 420 | 420 |
Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore BOMBTRACK cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local BOMBTRACK dealer or a professional bike fitter and have them determine the needed size.
HANDLEBAR GEOMETRY
Model | BEYOND 1 | ||||
---|---|---|---|---|---|
Bike Size | XS | S | M | L | XL |
Handlebar type | Dropbar | Dropbar | Dropbar | Dropbar | Dropbar |
Width (drops) | 420 | 420 | 440 | 440 | 460 |
Width (barends) | 594 | 594 | 614 | 614 | 634 |
Reach | 85 | 85 | 85 | 85 | 85 |
Flare | 30° | 30° | 30° | 30° | 30° |
Backsweep | - | - | - | - | - |
Drop | 115 | 115 | 115 | 115 | 115 |
Upsweep | - | - | - | - | - |
Rise | - | - | - | - | - |
