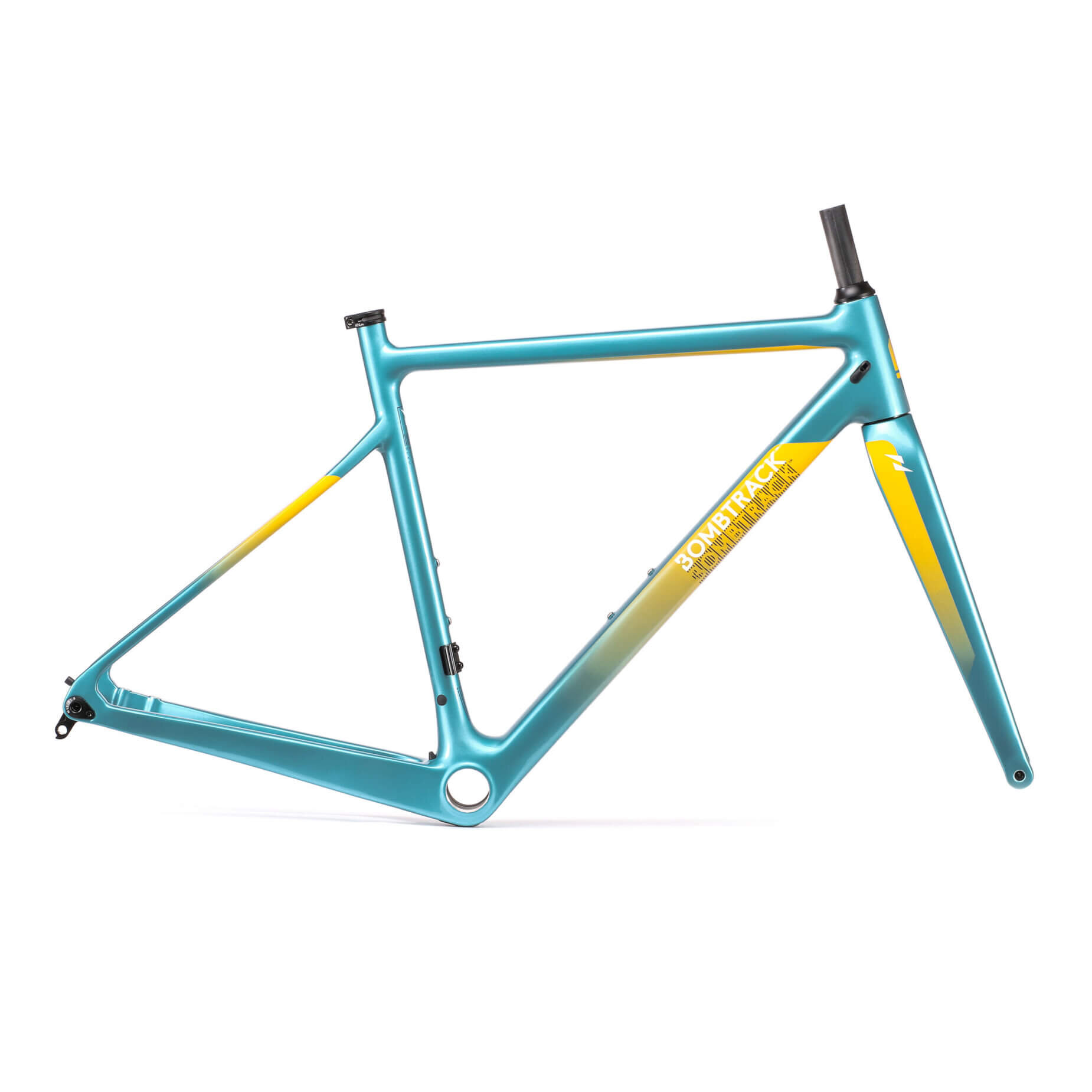

TENSION C FRAMESET
A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.
A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.
A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.
Head down, tongue down, pedal pedal pedal.
SPECIFICATIONS
| Model | TENSION C |
|---|---|
| Color 1 | Glossy Turquoise |
| Color 2 | - |
| Frame | TORAY T700/T800 Hi-Mod carbon, TA, 68 mm T47 BB shell |
| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'' |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Seat clamp | BOMBTRACK PRIME forged aluminium seat clamp, 31.8 mm |
| Rack | - |
| Weight frameset | 1060 g frame (size S, incl. TA, hanger, cable guides) / 600 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 105 kg incl. luggage |
| ASTM riding condition | 2 |
BUILD INFO
| Model | TENSION C |
|---|---|
| BB standard | T47 - 68 mm shell width |
| Headset standard (S.H.I.S.) | IS42 / 28.6 | IS52 / 40 |
| Headset crown race angle | 45° |
| Fork max tire clearance w/o fender | 700C x 37C |
| Frame max tire clearance w/o fender | 700C x 37C |
| Maximum chainring clearance 1x | 46 T with 45 mm chainline |
| Maximum chainring clearance 2x | 53 / 39 T with 43.5 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 31.8 mm |
| Front derailleur clamp diameter | FD direct mount |
| Brake mount front | FM |
| Brake mount rear | FM |
| Maximum rotor clearance front | 160 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Derailleur hanger | BT-DH-013 |
| Frame small parts | BT-CR-012 |
| Through axle front | BT-TA-F-603 |
| Through axle rear | BT-TA-R-603 |
GEOMETRY
FRAME GEOMETRY
| Model | TENSION C | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 700C | 700C | 700C | 700C | 700C |
| Seat Tube Length | 490 | 520 | 540 | 560 | 580 |
| Horizontal TT length | 521 | 535 | 545 | 560 | 575 |
| Seat Angle | 75.0° | 74.0° | 73.5° | 73.0° | 73.0° |
| Seat Angle effective | 75.0° | 74.0° | 73.5° | 73.0° | 73.0° |
| Head Angle | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| Headtube Length | 110 | 123 | 140 | 160 | 180 |
| BB Drop | 64 | 64 | 64 | 64 | 64 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| Fork Offset | 45 | 45 | 45 | 45 | 45 |
| Trail | 73 | 70 | 66 | 66 | 66 |
| Wheelbase Length | 1007 | 1007 | 1008 | 1018 | 1033 |
| Standover | 761 | 785 | 800 | 818 | 837 |
| Reach | 378 | 376 | 378 | 382 | 391 |
| Stack | 533 | 553 | 565 | 584 | 603 |
| Front Center | 591 | 591 | 591 | 601 | 616 |
| Axle to Crown | 400 | 400 | 400 | 400 | 400 |
| Minimum rider height | 1550 | 1630 | 1710 | 1790 | 1860 |
| Maximum rider height | 1650 | 1730 | 1810 | 1880 | 1950 |
HIGHLIGHTS
* Full carbon frame with tapered headtube and T47 bottom bracket.
* Full carbon fork with through axles and flat mount disc brake.
* Race proven geometry for fast handling and acceleration.
* Oversized downtube and chainstays for maximum power transfer.
* Low seatstays for optimized compliance.
* Front derailleur compatible.
* 12 mm through axles front and rear.
