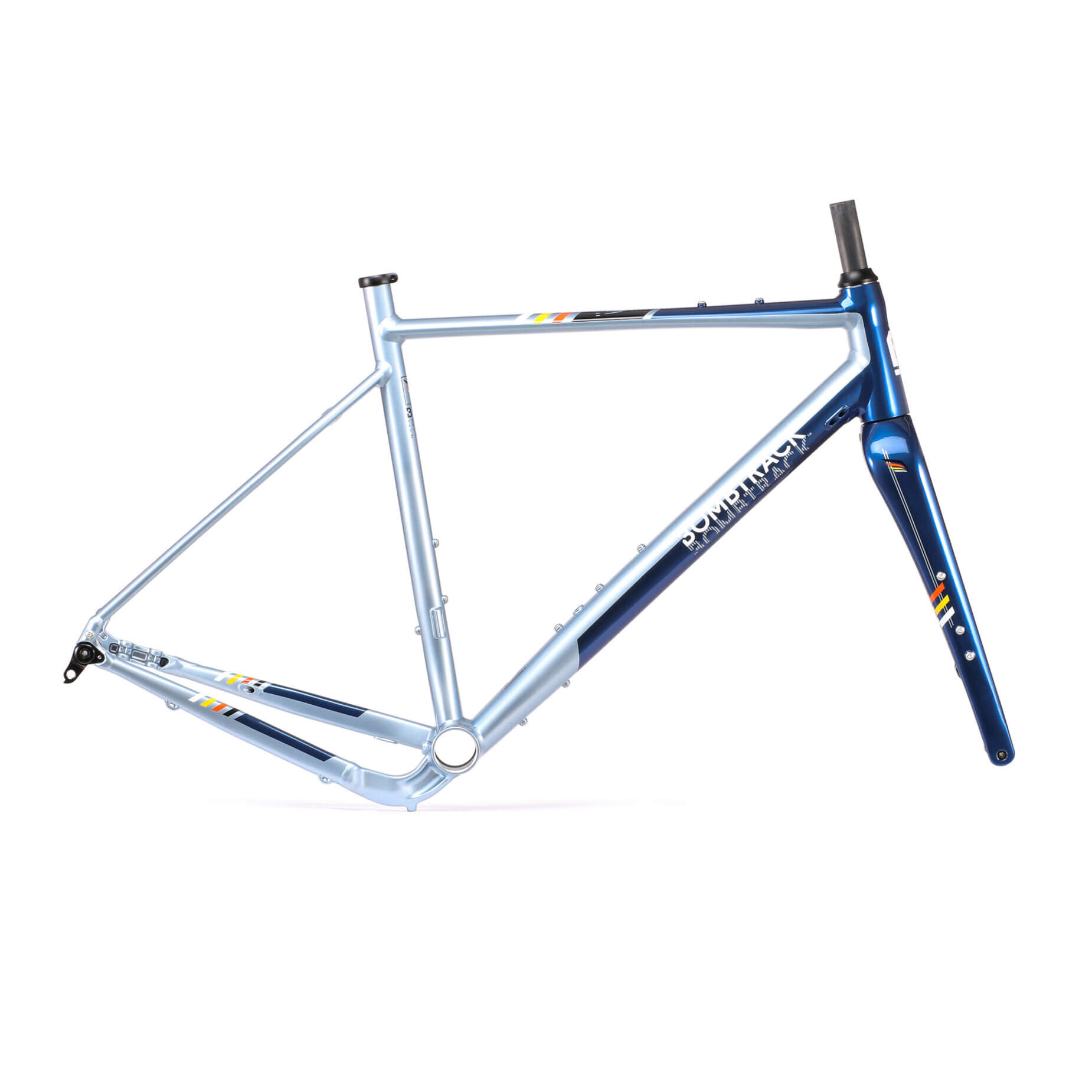

AUDAX AL FRAMESET

US$0.00

A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. Able to accommodate both broad treads and mudguards, a huge range of fixings mean it’s happy carrying standard panniers or bikepacking bags. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.

Quantity:
Add To Cart

A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. Able to accommodate both broad treads and mudguards, a huge range of fixings mean it’s happy carrying standard panniers or bikepacking bags. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.

A modern audax bike. Our Audax AL uses its voluminous tyres and carbon fork to float over a range of surfaces. Able to accommodate both broad treads and mudguards, a huge range of fixings mean it’s happy carrying standard panniers or bikepacking bags. With a unique rapid geometry featuring short chainstays and an engaged front end, handling is kept lively.



Suited to mixed riding, it reflects the real habits of many cyclists, rather than the smooth and repetitive terrain of televised road racing.




SPECIFICATIONS

ModelAUDAX AL
Color 1Glossy Sky Blue
Color 2-
Frame6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell
ForkFull carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
Through axle12 x 100 mm / 12 x 142 mm
Seat clampBOMBTRACK ORIGIN forged aluminium seat clamp, 31.8 mm
Rack-
Weight frameset1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA)
Maximum rider weight120 kg incl. luggage
ASTM riding condition2

BUILD INFO

ModelAUDAX AL
BB standardT47 - 86.5 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle36°
Fork max tire clearance w/o fender650B x 50C / 700C x 35C
Frame max tire clearance w/o fender650B x 50C / 700C x 35C
Maximum chainring clearance 1x42 T with 45 mm chainline
Maximum chainring clearance 2x50 / 34 T with 43.5 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameterFD braze on
Brake mount frontFM
Brake mount rearFM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
Derailleur hangerBT-DH-018
Frame small partsBT-CR-013
Through axle frontBT-TA-F-601
Through axle rearBT-TA-R-601

GEOMETRY

FRAME GEOMETRY

ModelAUDAX AL
Bike SizeXSSMLXL
Wheel size650B650B650B650B650B
Seat Tube Length470500530560590
Horizontal TT length505527551569592
Seat Angle75.0°74.5°74.0°74.0°73.5°
Seat Angle effective75.0°74.5°74.0°74.0°73.5°
Head Angle71.0°72.0°72.0°72.0°72.0°
Headtube Length100120150180205
BB Drop7068686565
Chainstay Length420420420420420
Fork Offset5353535353
Trail6256565656
Wheelbase Length9911000102110411059
Standover728754782812838
Reach368379390401411
Stack512533561587611
Front Center581590610630647
Axle to Crown385385385385385
Minimum rider height 15001600170017901880
Maximum rider height 16101710181019001990





HIGHLIGHTS

* Lightweight aluminum frame with heavily hydro formed tube profiles and T47 bottom bracket.

* Full carbon fork with bottle cage mounts.

* Ovalized toptube and low seatstays for supreme comfort.

* Oversized downtube for optimized power transfer and steering precision.

* Toptube bag direct mounts, triple cage mounts on downtube for optimized bottle position, bottle cage mounts underneath the downtube and on the seattube.

* Front derailleur compatible.

* 12 mm through axles front and rear.
