gear ARISE FRAMESET
1 / 8

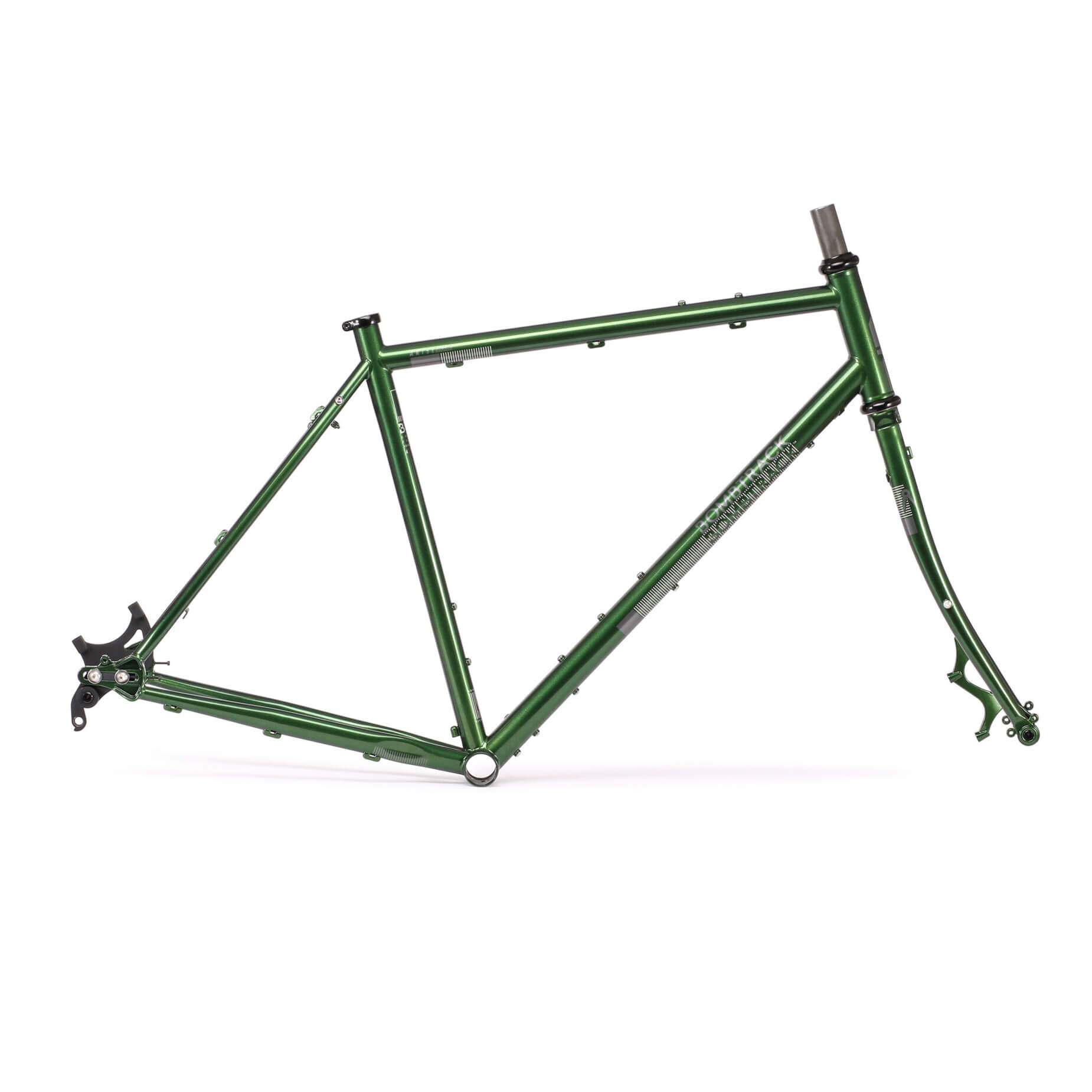

BT_MY21_Arise_frame_set-01.jpg Image 1 of 8
BT_MY21_Arise_frame_set-02.jpg Image 2 of 8
BT_MY21_Arise_frame_set-03.jpg Image 3 of 8
BT_MY21_Arise_frame_set-04.jpg Image 4 of 8
BT_MY21_Arise_frame_set-05.jpg Image 5 of 8
BT_MY21_Arise_frame_set-06.jpg Image 6 of 8
BT_MY21_Arise_frame_set-07.jpg Image 7 of 8
BT_MY21_Arise_frame_set-08.jpg Image 8 of 8

ARISE FRAMESET

US$0.00

Our Arise is ready to follow whatever road you point it down. A simple, versatile frame, yet with disc brakes, a lively steel frame, and through axles in sliding dropouts it’s no Luddite. Compatible with internally geared hubs, derailleurs or single speed drivetrains and either drop or flat bars, it’s happy over multiple surfaces and ready to take on anything from commuting over touring to cyclocross and gravel racing.

Add To Cart

Our Arise is ready to follow whatever road you point it down. A simple, versatile frame, yet with disc brakes, a lively steel frame, and through axles in sliding dropouts it’s no Luddite. Compatible with internally geared hubs, derailleurs or single speed drivetrains and either drop or flat bars, it’s happy over multiple surfaces and ready to take on anything from commuting over touring to cyclocross and gravel racing.

Our Arise is ready to follow whatever road you point it down. A simple, versatile frame, yet with disc brakes, a lively steel frame, and through axles in sliding dropouts it’s no Luddite. Compatible with internally geared hubs, derailleurs or single speed drivetrains and either drop or flat bars, it’s happy over multiple surfaces and ready to take on anything from commuting over touring to cyclocross and gravel racing.



Sharing all the same frame you can choose what to build: your personalized Arise Tour, an individual Arise Geared - or even our classic singlespeed Arise.



  • SPECIFICATIONS
  • BUILD INFO
  • GEOMETRY
SPECIFICATIONS
ModelARISE
Color 1Glossy Coffee Black
Color 2Glossy Metallic Green
Frame4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork4130 crmo, TA, rack / fender mounts, internal hub
dynamo cable routing
HeadsetNECO H282 sealed external aheadset, 1.1/8''
Through axle12 x 100 mm / 12 x 142 mm
Seat clampBOMBTRACK ORIGIN 29.8 mm
Rack-
Weight frameset2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight120 kg incl. luggage
ASTM riding condition2
BUILD INFO
ModelARISE
BB standardBSA - 68 mm shell width
Headset standard (S.H.I.S.)EC34 / 28.6 | EC34 / 30
Headset crown race angle45°
Fork max tire clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C
Frame max tire clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C*
Maximum chainring clearance 1x44 T with 45 mm chainline
Maximum chainring clearance 2x52 / 36 T with 45 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter29.8 mm
Front derailleur clamp diameter28.6 mm
Brake mount frontPM
Brake mount rearPM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
Derailleur hangerBT-DH-022
Frame small partsBT-CR-007
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-603
GEOMETRY

FRAME GEOMETRY

ModelARISE
Bike SizeXSSMLXL
Wheel size650B650B700C700C700C
Seat Tube Length460490520550580
Horizontal TT length506529554578602
Seat Angle73.5°73.5°73°73°73°
Seat Angle effective73.5°73.5°73°73°73°
Head Angle70°70.5°70.5°71°71°
Headtube Length100130150180210
BB Drop5555707070
Chainstay Length420420435435435
Fork Offset5555555555
Trail6460686565
Wheelbase Length9951016104510651090
Standover733762799828857
Reach351370379394409
Stack508538572602631
Front Center582602619639664
Axle to Crown390390390390390
Minimum rider height 15001600170017901880
Maximum rider height 16101710181019001990





HIGHLIGHTS

* Double butted crmo frame with sliding dropouts and internal light cable routing.

* Size XS and S will come with 650B wheels to ensure proper fit without any compromises in geometry.

* Integrated spare spoke holder and integrated chain hanger.

* Crmo fork with internal light cable routing.

* Frame and fork with rack and fender mounts.

* Front derailleur compatible.

* 12 mm through axles front and rear.
