TENSION FRAMESET

US$0.00

Another step up the rankings. Easy to keep running through a whole season of muddy competition its durable chassis features a T47 threaded bottom bracket for zero-fuss maintenance. Ensuring all riders achieve the same great results, the Tension features size-matched wheels - with 650B wheels on sizes XS and S and 700C wheels on sizes M - XL.

Quantity:

“The beauty of the stiff alloy frame is also that it climbs quickly, readily flying when you open up a sprint. The bike handled tight & twisting turns, loose downhill & pedaly sections, and repeated short sprints all without hesitation.”

SPECIFICATIONS

Model	TENSION
Color 1	Matt Black
Color 2	-

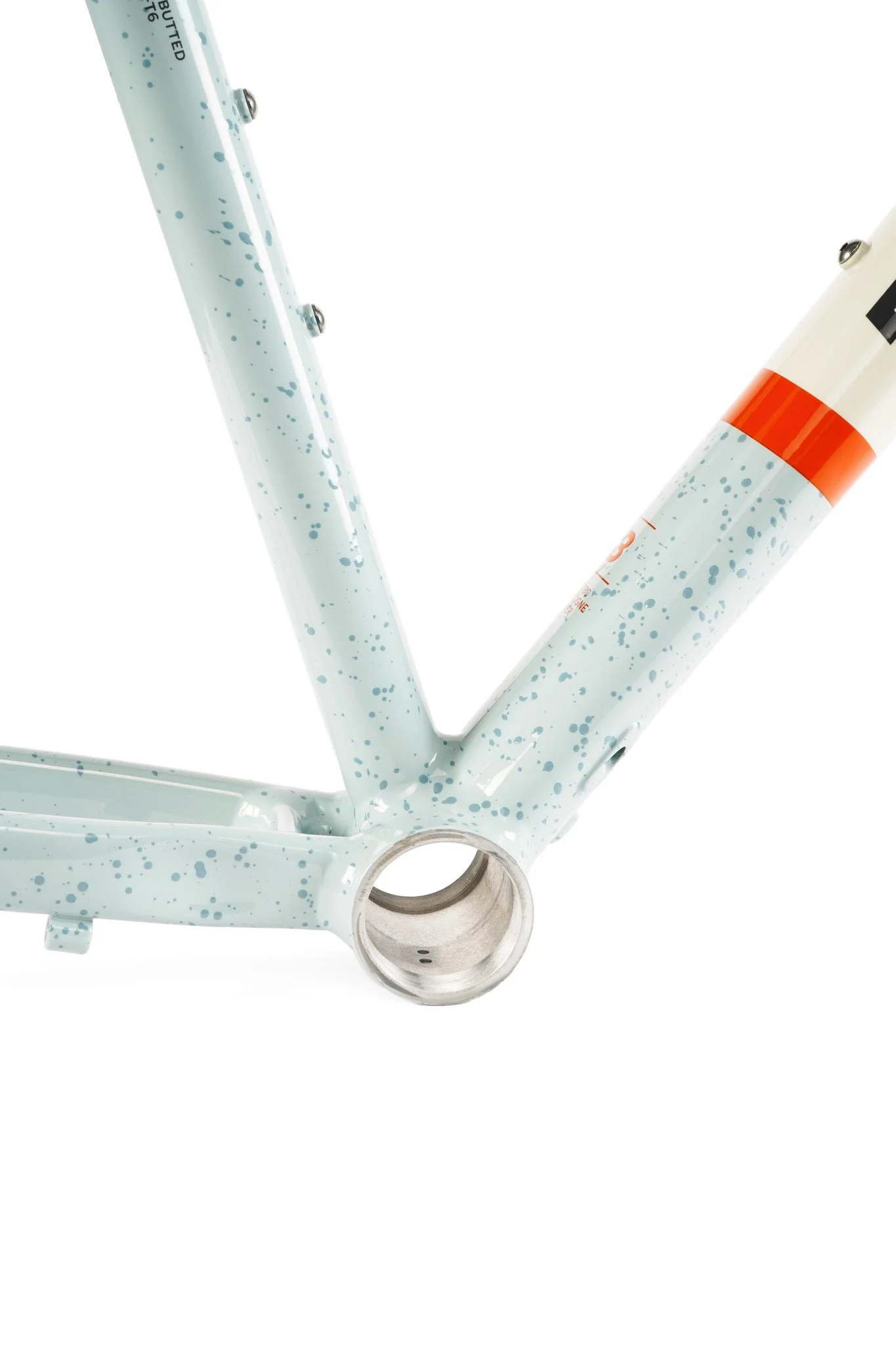

Frame	6061-T6 double butted aluminium, TA, rack / fender mounts, 86.5 mm T47 BB shell

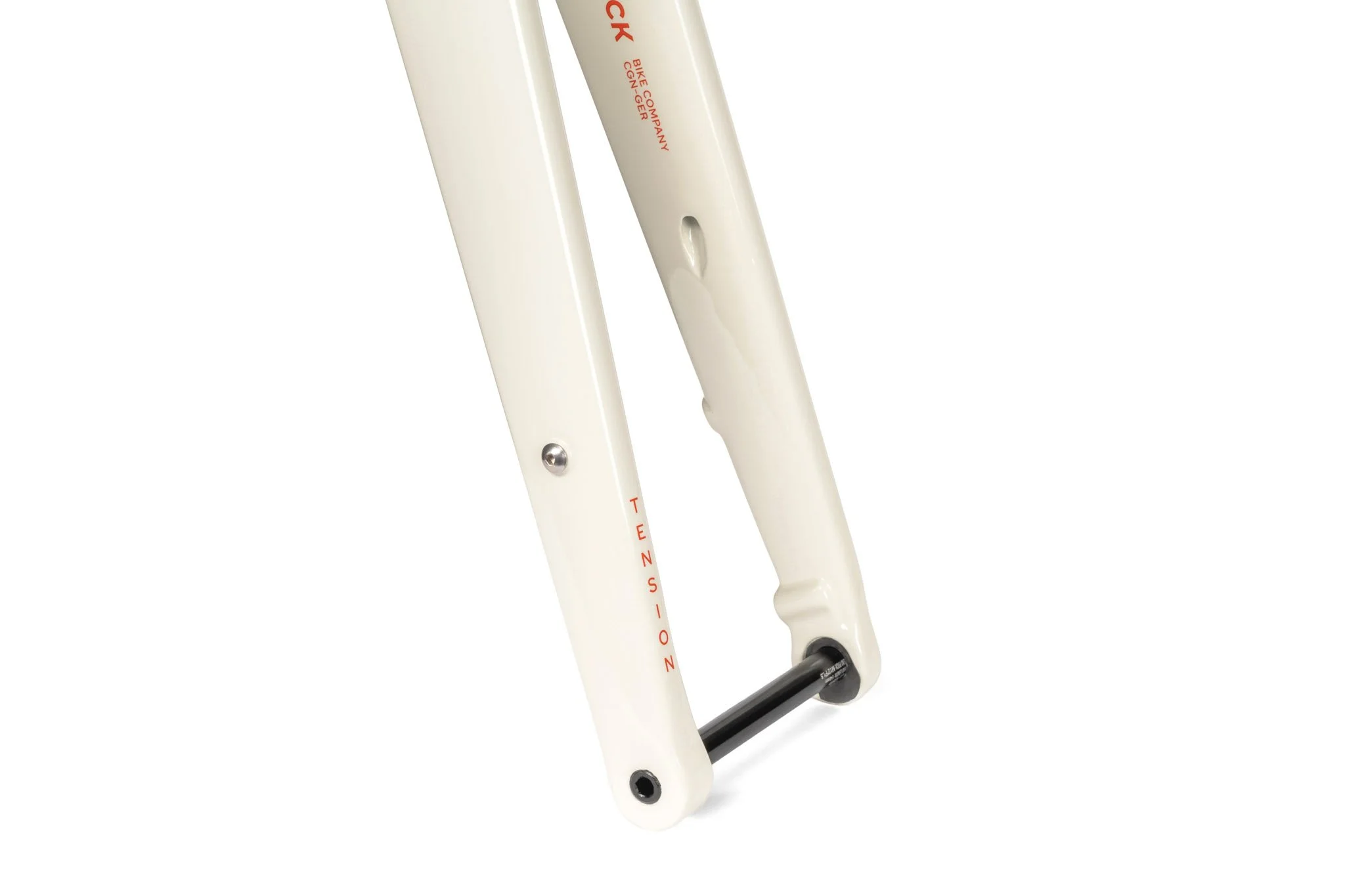

Fork	Full carbon, TA, 1.1/2'' - 1.1/8'', fender mounts
Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Through axle	12 x 100 mm / 12 x 142 mm

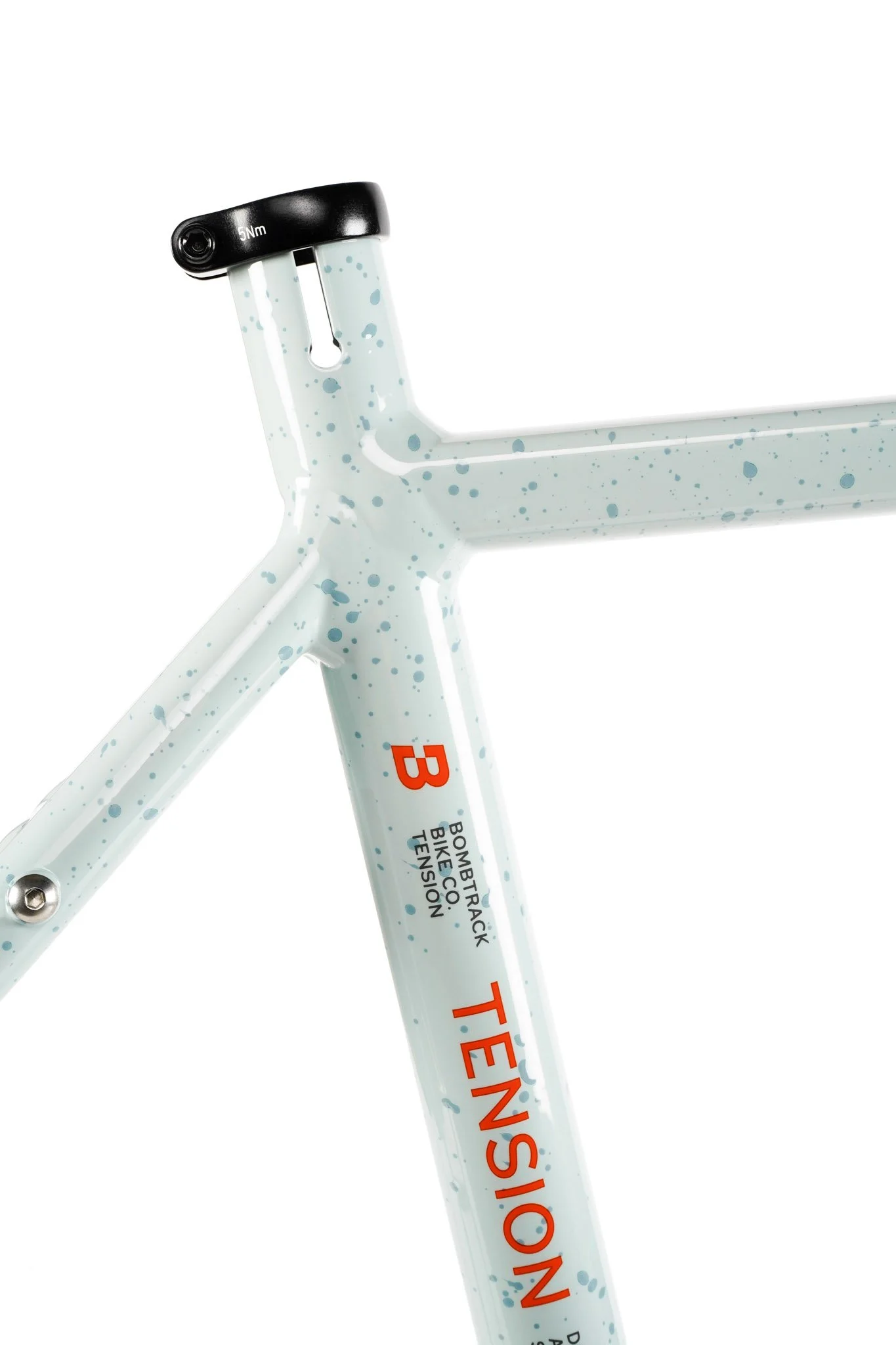

Seat clamp	Bombtrack Prime 31.8 mm
Rack	-
Weight frameset	1580 g frame (size L, incl. TA, hanger) / 610 g fork (300 mm steerer, incl. TA)
Maximum rider weight	120 kg incl. luggage
ASTM riding condition	2

BUILD INFO

Model	TENSION
BB standard	T47 - 86.5 mm shell width
Headset standard (S.H.I.S.)	IS42 / 28.6 \| IS52 / 40
Headset crown race angle	45°
Fork steerer inner diameter	23.6 mm
Fork max tire clearance w/o fender	XS - S 650B x 37C / M - XL 700C x 37C
Frame max tire clearance w/o fender	XS - S 650B x 35C / M - XL 700C x 37C
Maximum chainring clearance 1x	42 T with 45 mm chainline
Maximum chainring clearance 2x	50 / 34 T with 43.5 mm chainline
Seat post diameter	27.2 mm
Seat clamp diameter	31.8 mm
Front derailleur clamp diameter	31.8 mm
Frame front derailleur compatible	yes
Brake mount front	FM 140 / 160
Brake mount rear	FM 140 / 160
Maximum rotor clearance front	160 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch

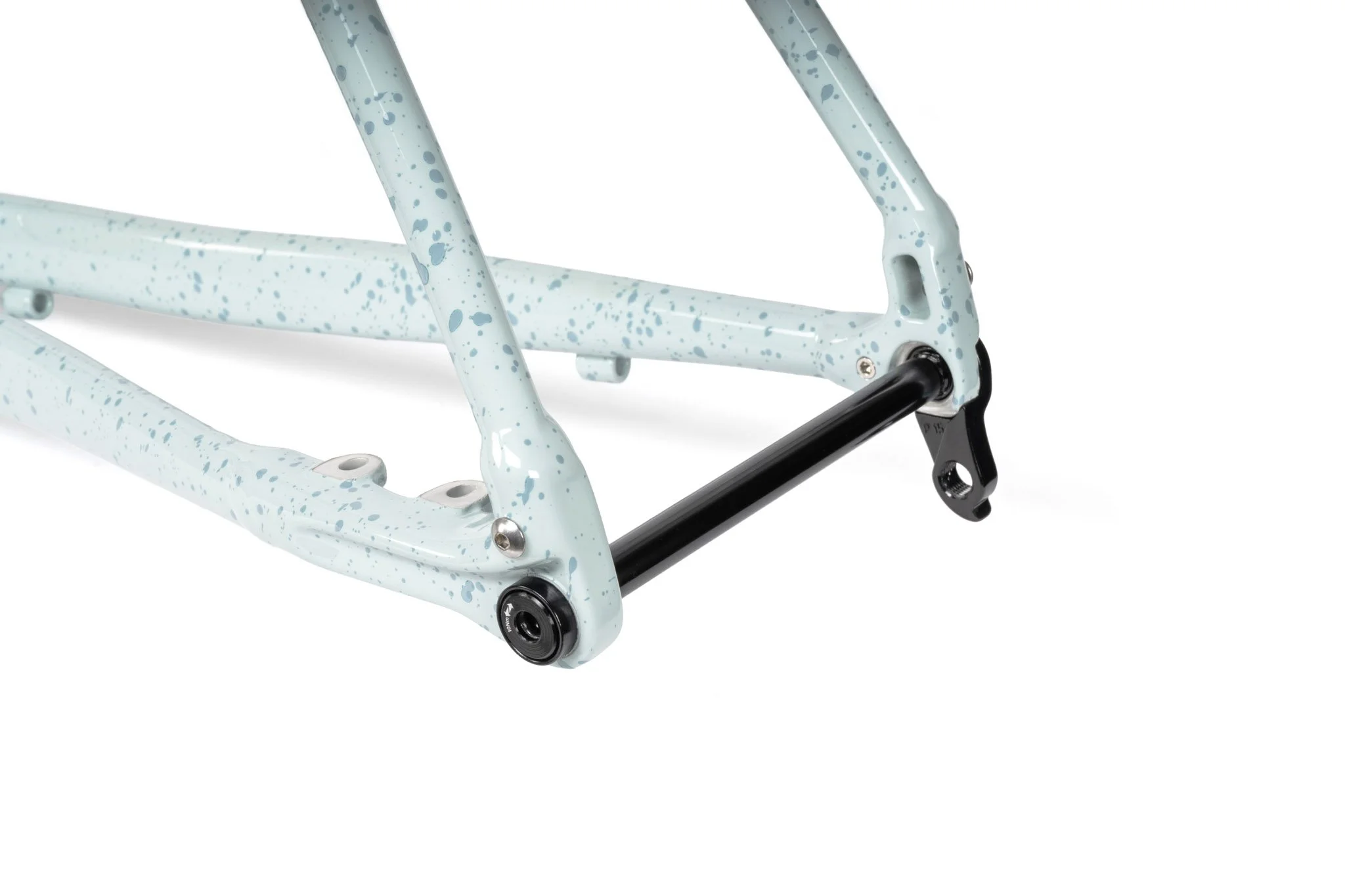

Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	Road
Bike trailer	not approved
Seat tube mounted child seat	not approved
Derailleur hanger	BT-DH-018
Frame small parts	BT-CR-013
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-601

GEOMETRY

FRAME GEOMETRY

Model	TENSION
Bike Size	XS	S	M	L	XL
Wheel size	650B	650B	700C	700C	700C
Seat Tube Length	460	490	530	560	590
Horizontal TT length	507	523	552	570	586
Seat Angle	73.5°	73.5°	73.0°	73.0°	73.0°
Head Angle	71.0°	71.5°	71.5°	72.0°	72.0°
Headtube Length	100	115	139	162	179
BB Drop	55	55	65	65	65
Chainstay Length	410	410	425	425	425
Fork Offset	45	45	45	45	45
Trail	67	64	70	66	66
Wheelbase Length	967	979	1014	1028	1044
Standover	734	757	799	825	848
Reach	355	366	380	391	402
Stack	514	530	563	587	603
Front Center	563	575	598	611	627
Axle to Crown	400	400	400	400	400
Minimum rider height	1500	1600	1700	1790	1880
Maximum rider height	1610	1710	1810	1900	1990
